Felo 58322040 Crimping Pliers

*THIS ITEM SHIPS IN 1-2 WEEKS

Felo 58322040 Crimping Pliers

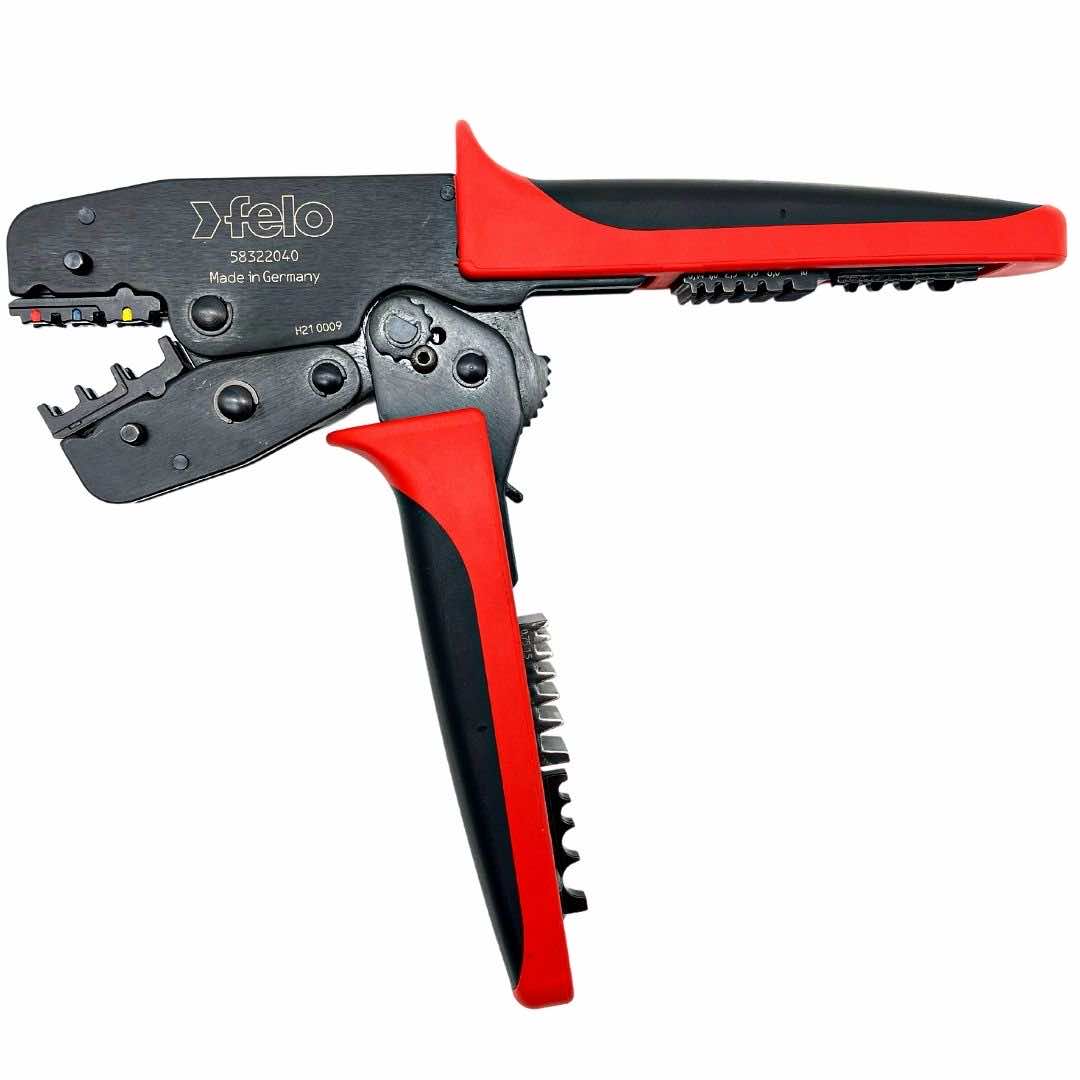

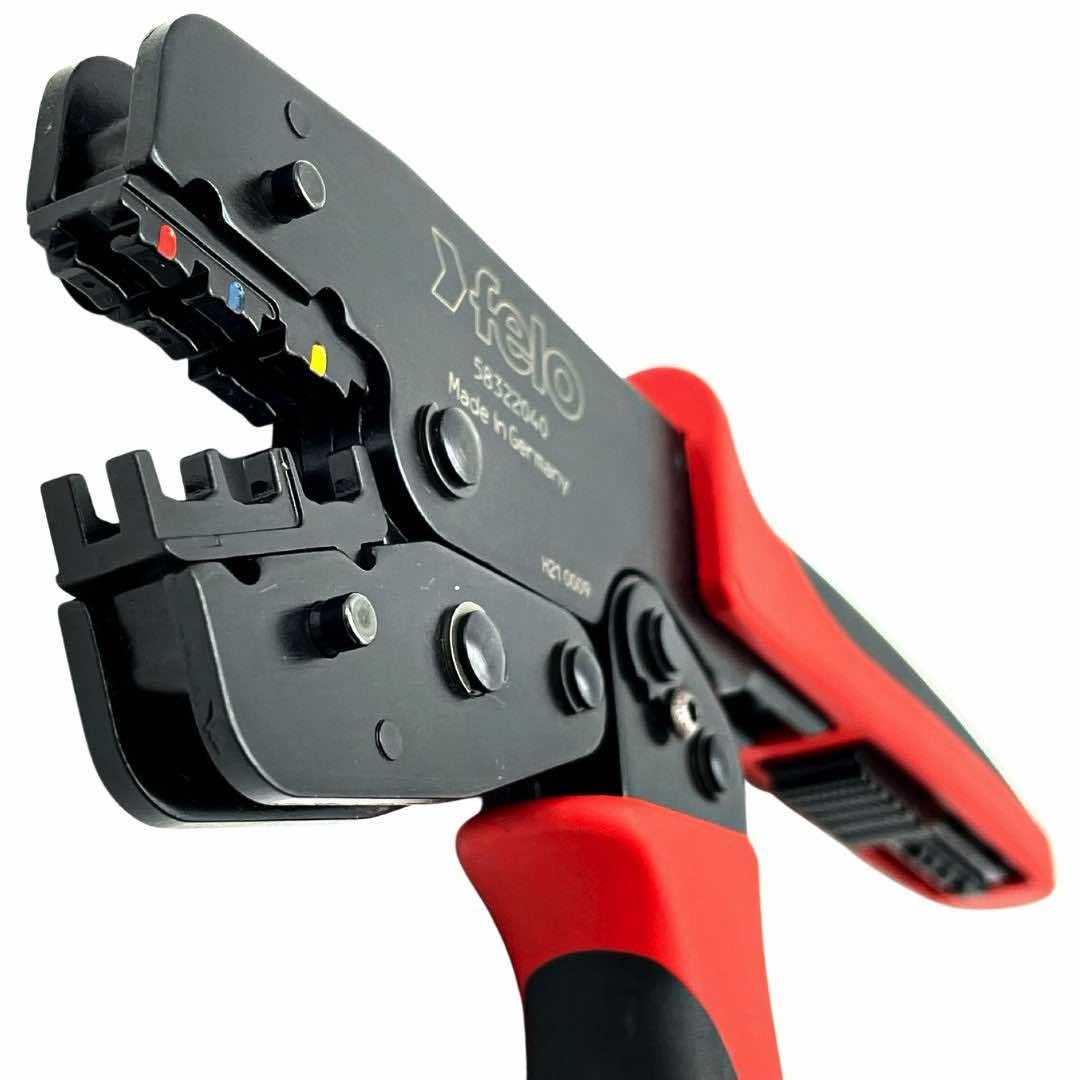

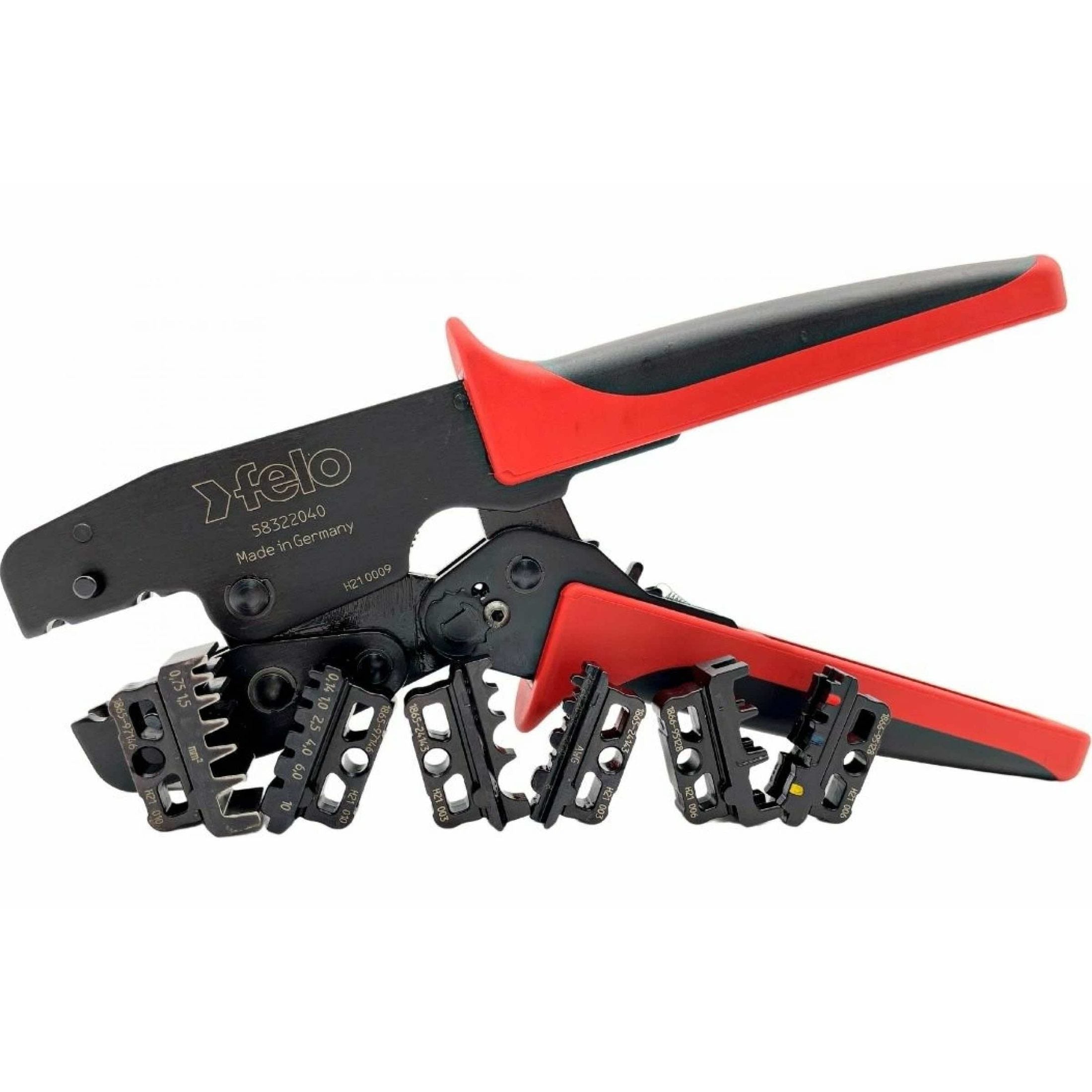

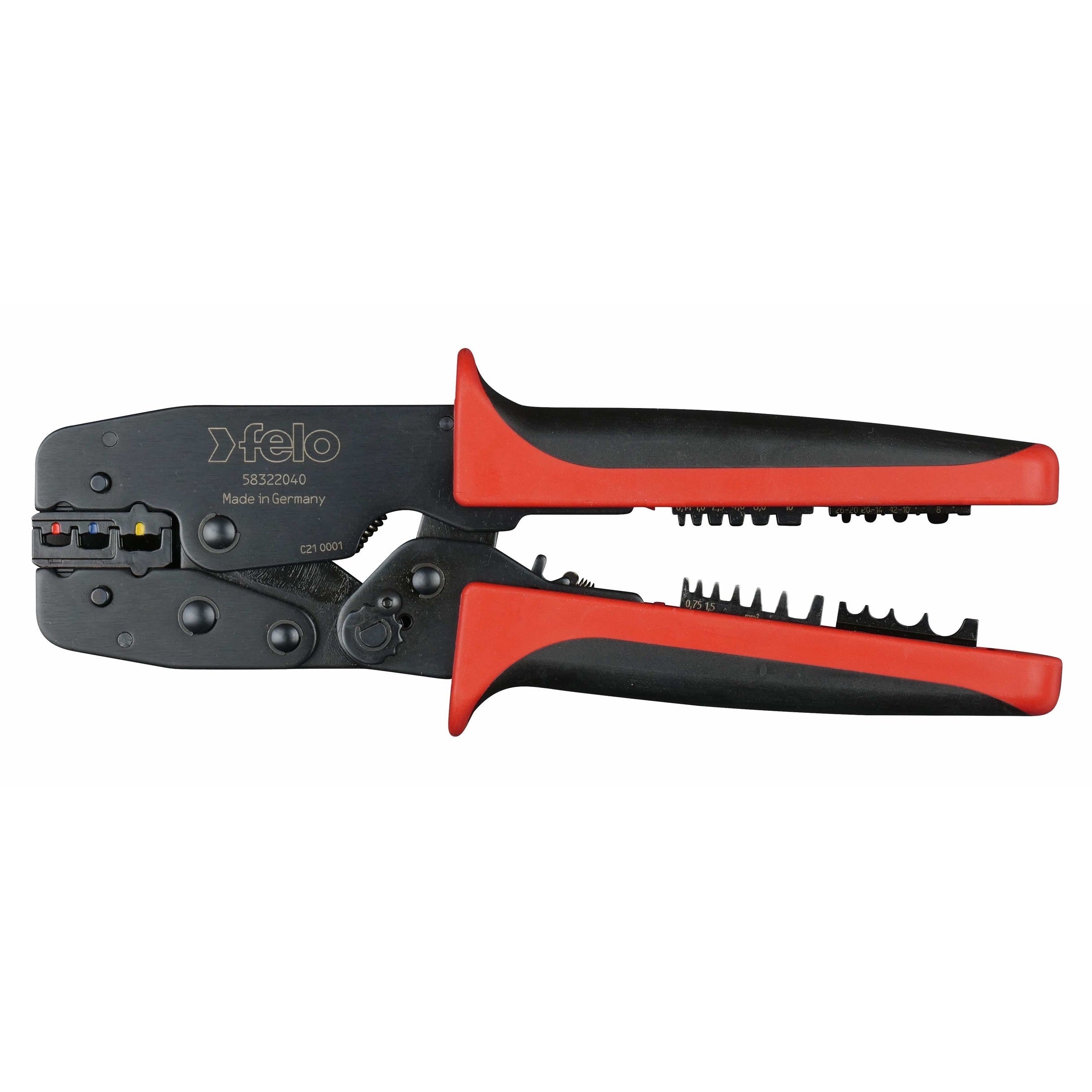

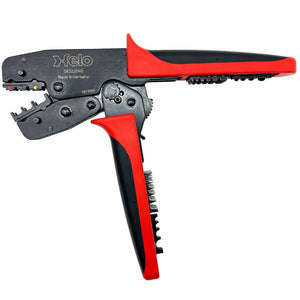

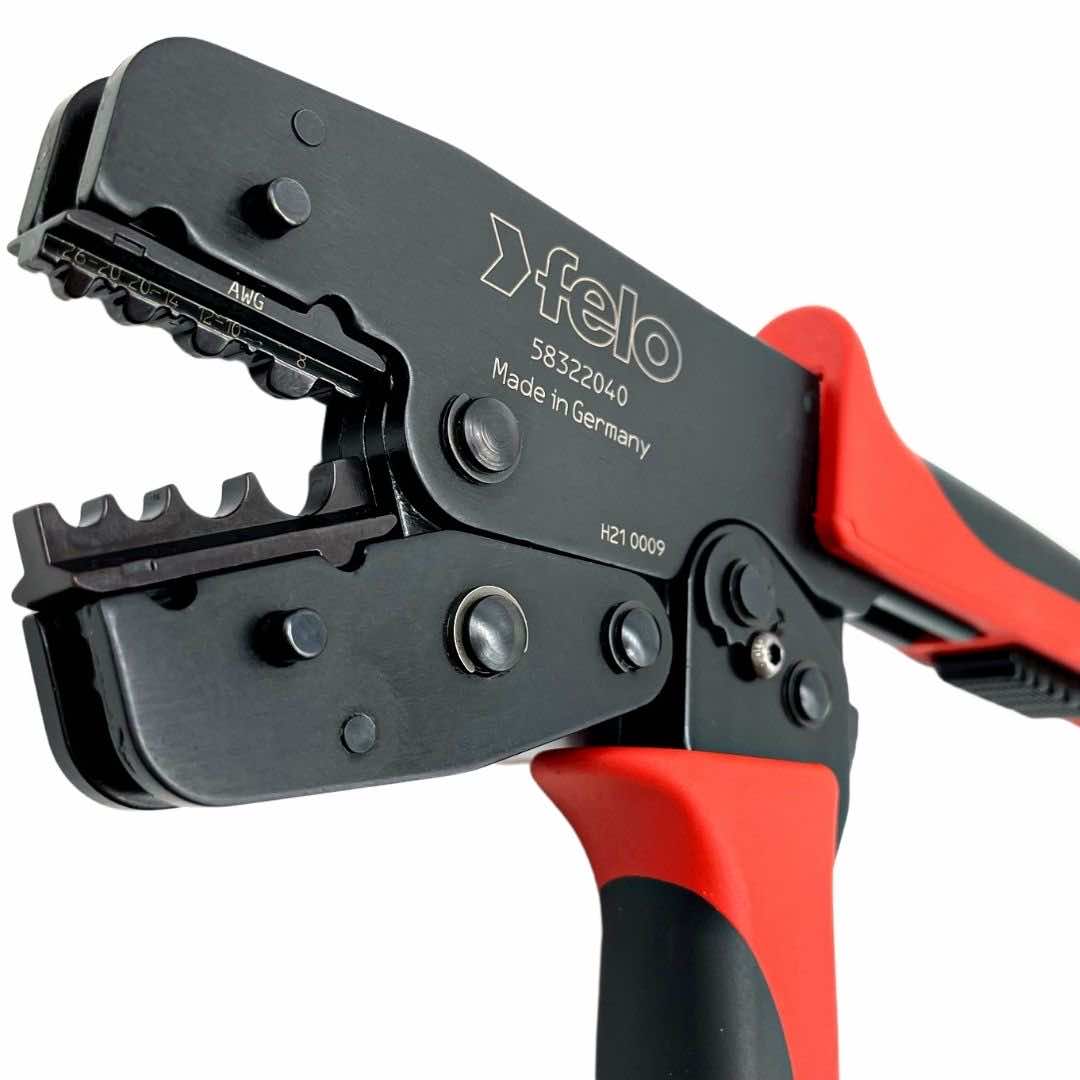

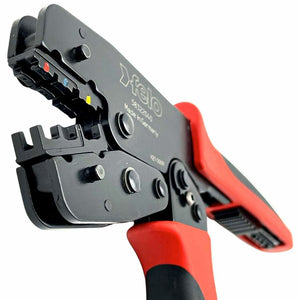

The FELO 58322040 crimping pliers are designed for crimping plugs and cable and ring terminals. The tool has a long service life, as it is made of chrome-vanadium tool steel, hardened in oil. The tool is equipped with a spring for quick opening. The multi-lever transmission system allows you to transfer a large force to the tool during operation. Replaceable nozzles in the crimping pliers kit allow them to work with the oval crimping method in the range from 0.75 to 10 mm2.

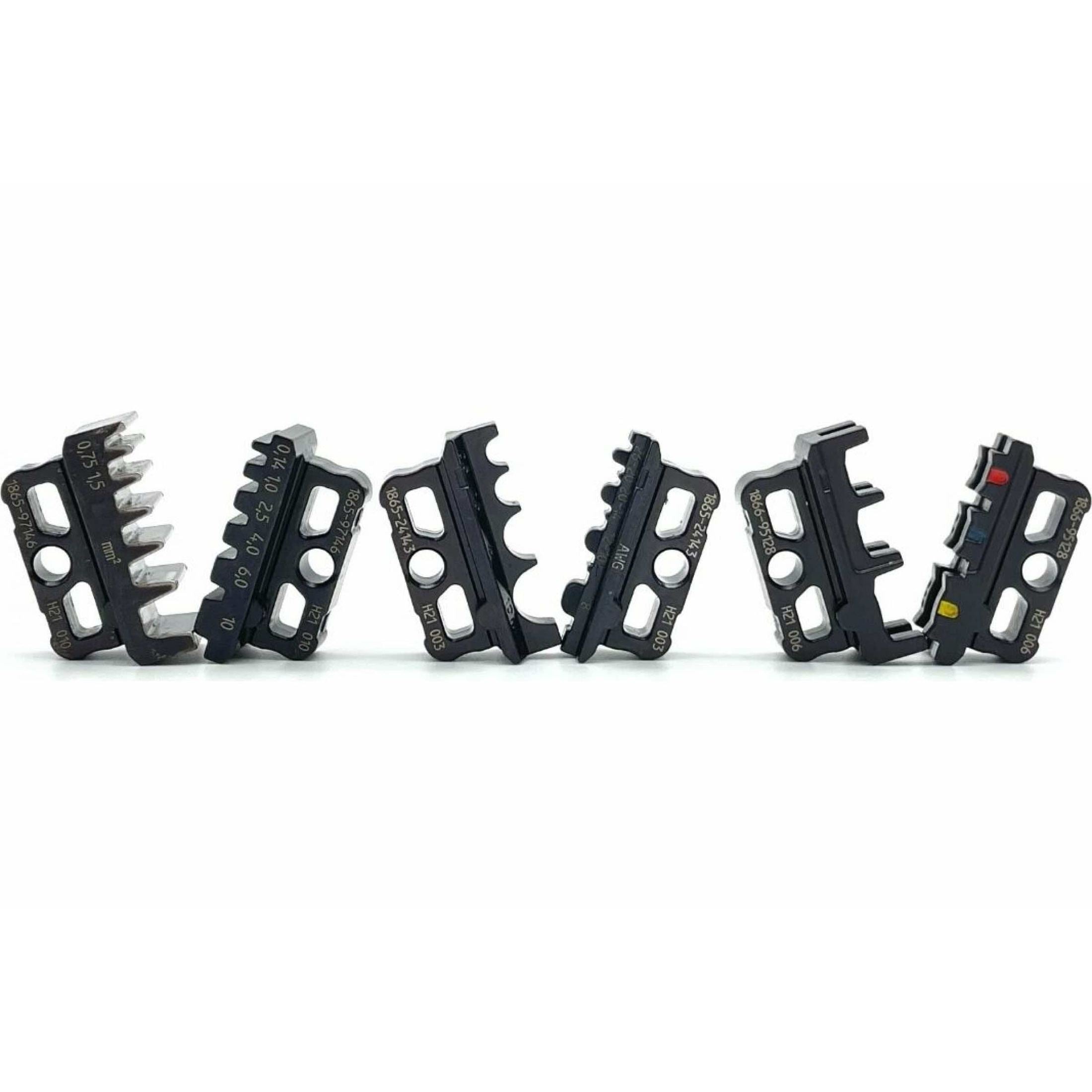

1 Matrix:

for processing DIN cable lugs with red/blue/yellow insulation,  pin cable lugs, flat plugs, flat sockets,  round plugs, round sockets, butt and parallel connectors

Profile 1: red 0.5-1.0 mm

Profile 2: blue 1.5-2.5 mm

Profile 3: 4.0-6.0 mm

2 Matrix:

for processing wire ends  without insulating sleeve according to DIN 46228,  cross-section range 0.14 - 10.0 mm

3 Matrix:

for processing non-insulated  cable lugs,  cross-section 0.1 - 10.0 mm

• Length: 240 mm
• Width: 90 mm
• Height: 40 mm
• Weight: 350 g
• Country of Origin: Germany
• SHK Number: 4007157648112
• Dielectric: No
