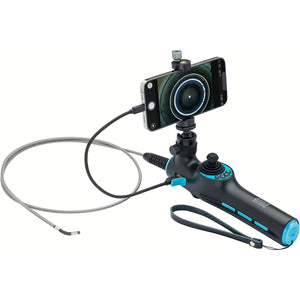

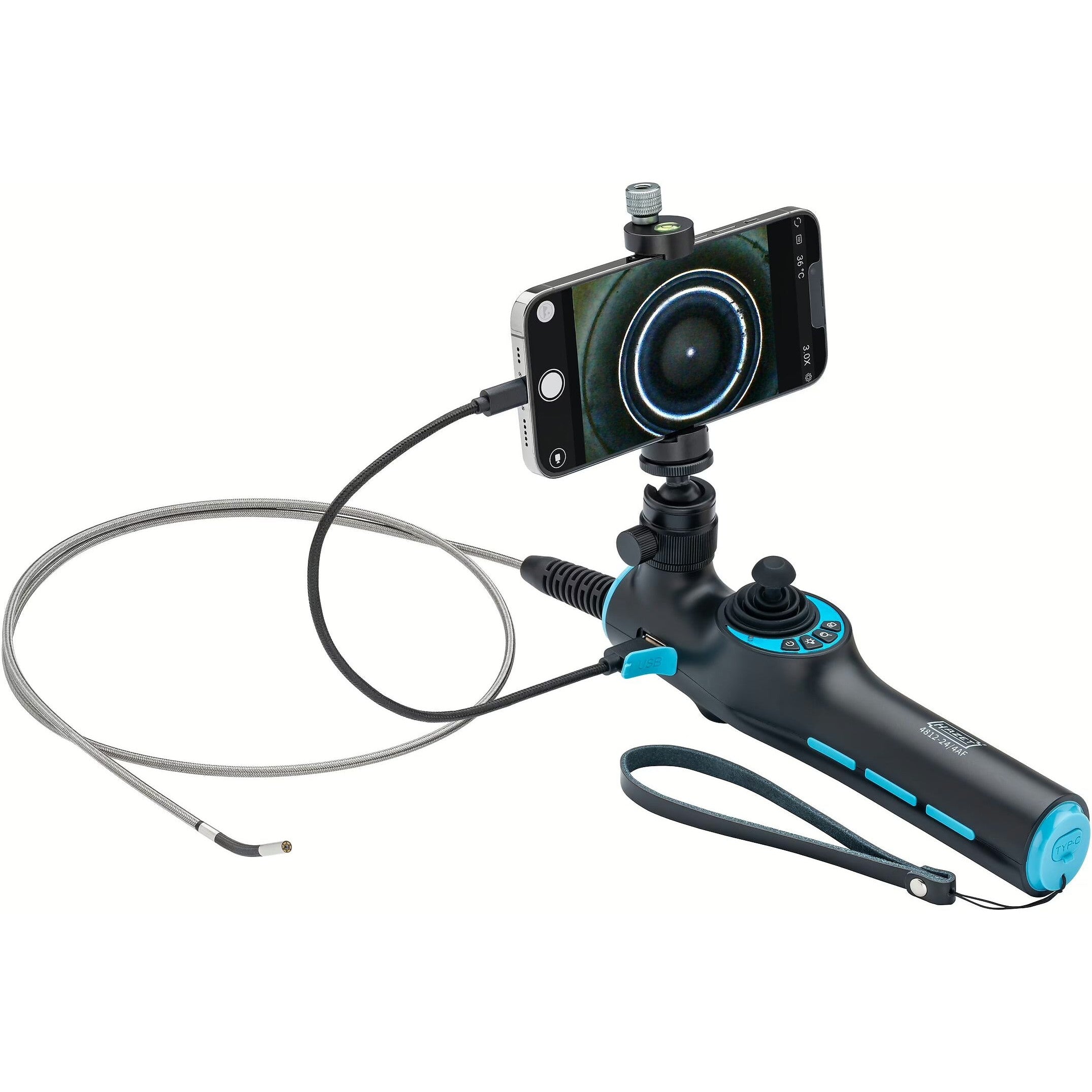

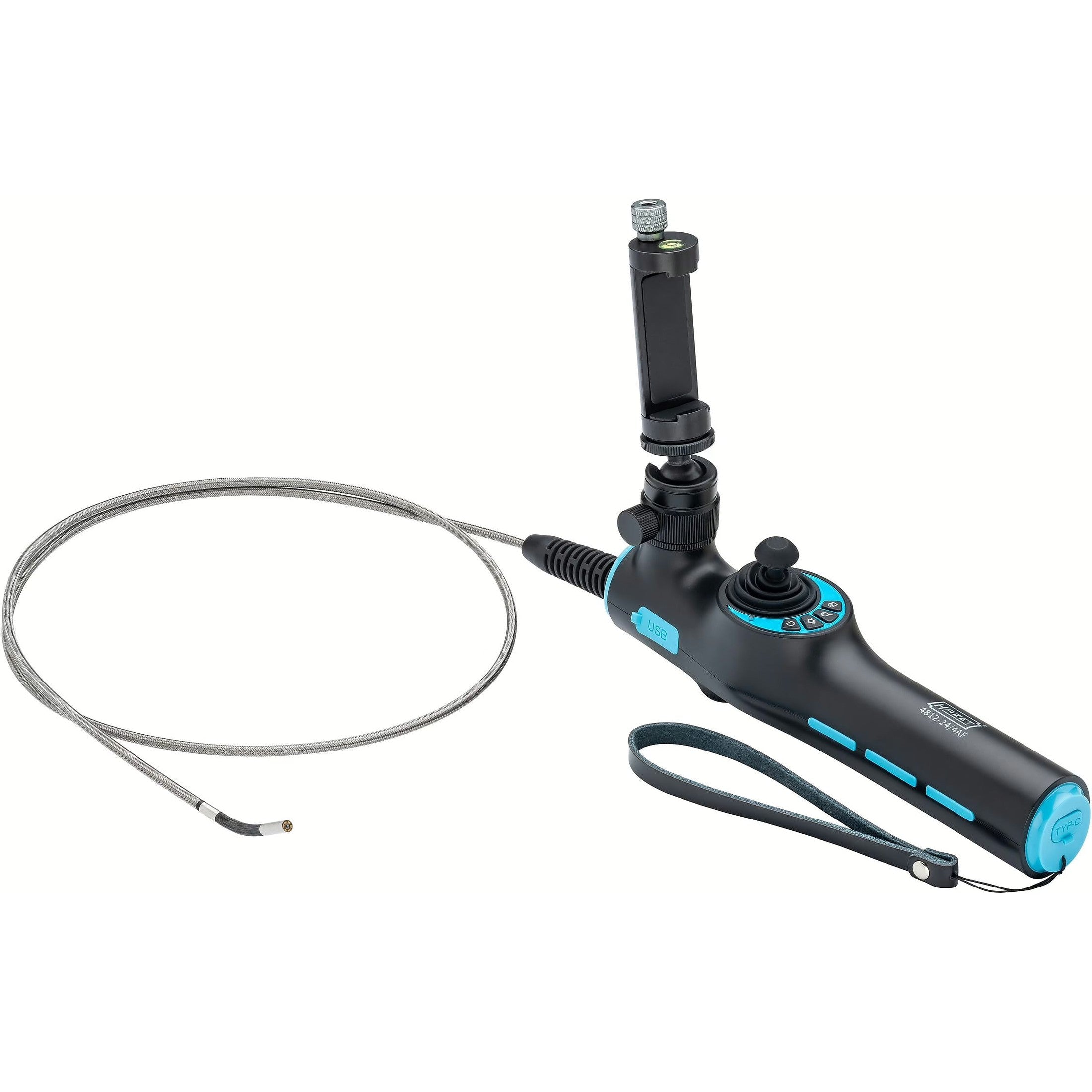

Hazet 4812-24/4AF - HD Video Borescope Set With 360° Swivelling Probe ⌀ 3.9 mm
Vendor: Vendor:
Hazet
Guaranteed Safe Checkout
Hazet 4812-24/4AF - HD Video Borescope Set With 360° Swivelling Probe ⌀ 3.9 mm
NOTE* This unit ships in 2-3 weeks
Hazet 4812-24/4AF - HD Video Borescope Set With 360° Swiveling Probe ⌀ 3.9 mm
Product information

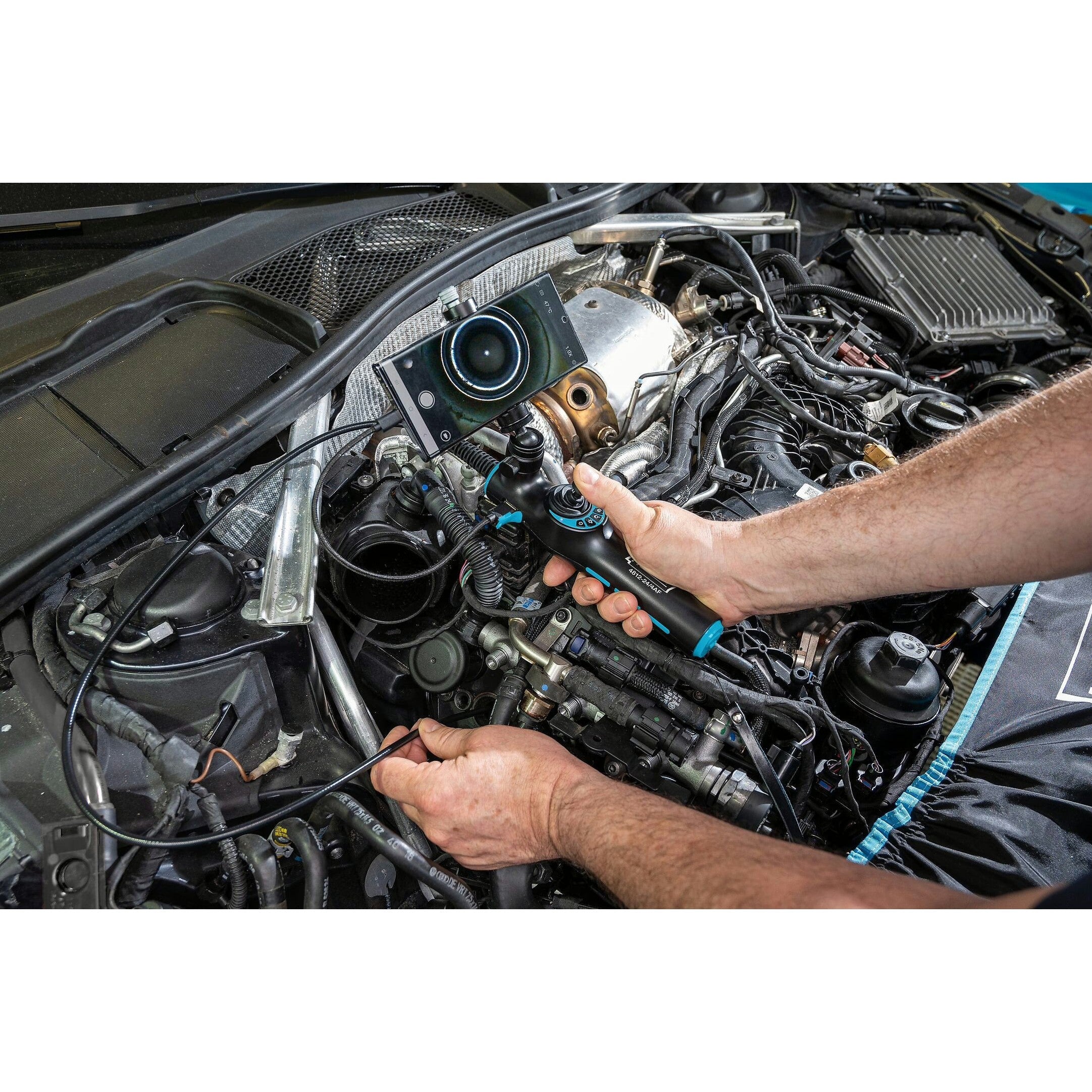

- Application: Diagnosis and documentation of cavities for damage assessment
- Fully articulated 3.9 mm ⌀ probe – hard-to-reach areas are now much easier to access
- Photo and video recording via app or control via operating elements of the borescope
- Joystick control of the camera probe via operating elements on the basic unit
- Wired connection of a smartphone as a display (Lightning ∙ USB-C)
- Image memory dependent on smartphone memory
- Removable Li-ion battery (1 x type 18650 – 3350 mAh) without additional tools
- Battery life: ≥ 2 hours
- Focus range (DOF): 5 – 100 mm
- Viewing angle (FOV): 100°
- Temperature warning alarm (app) and automatic switch-off if the maximum permissible camera temperature is exceeded

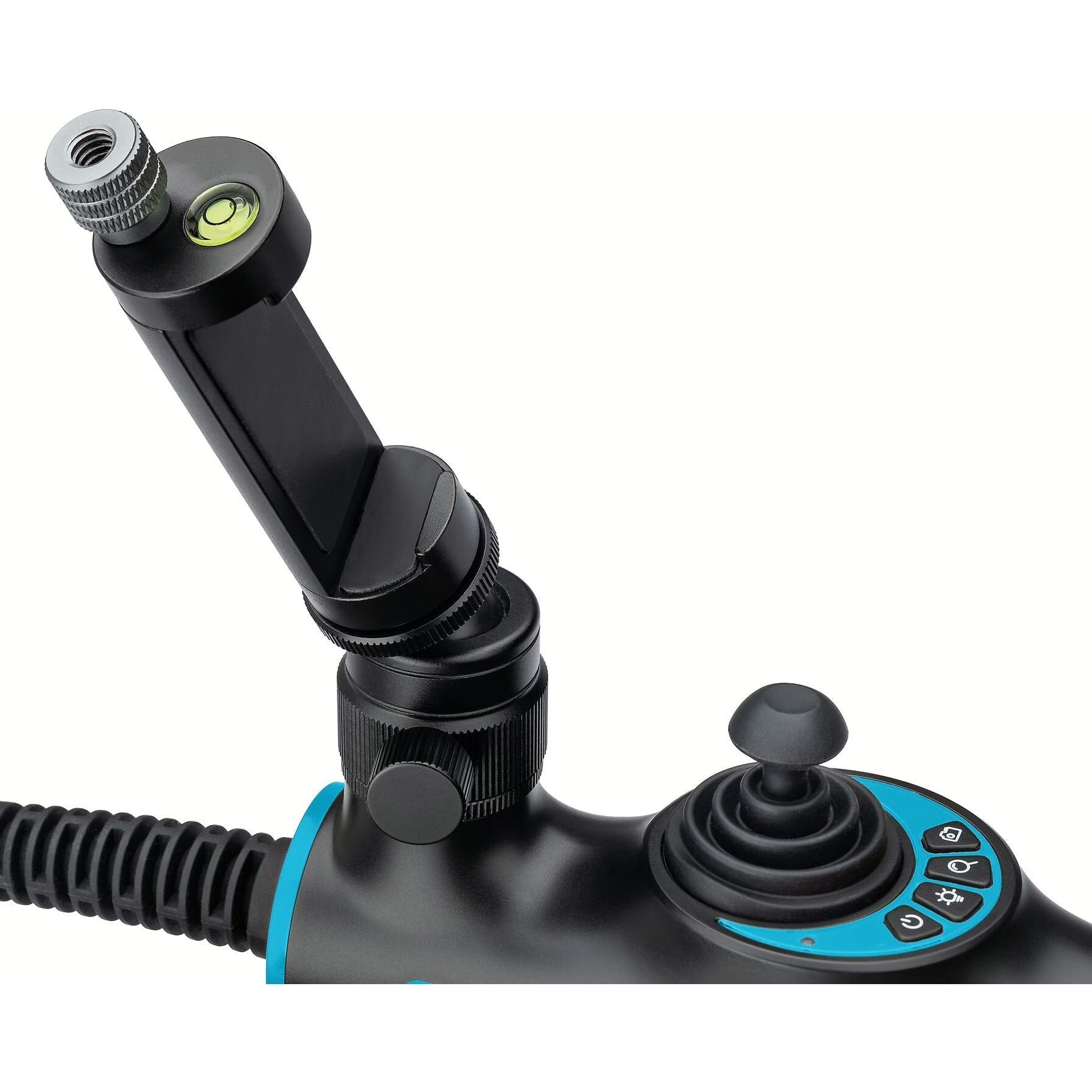

- Robust, swiveling and adjustable smartphone holder (span: 58 – 100 mm)
- Additional magnification of the image using the smartphone display (drag)

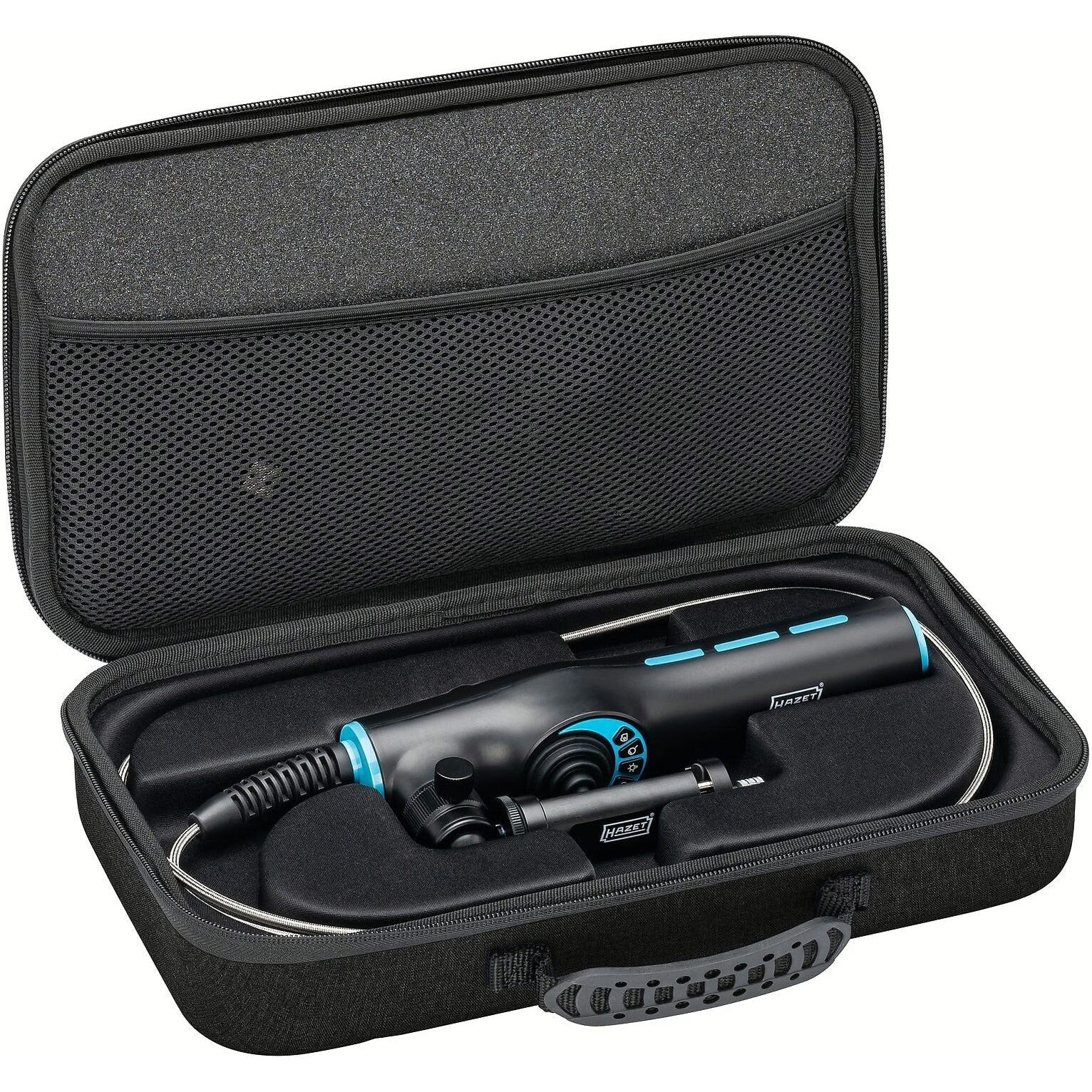

- 4-piece set in soft case with moulded insert
- Data cable USB-A to Lightning (iOS legacy) ∙ length: 0.3 m
- Data cable USB-A to USB-C (Android, current iOS etc.) ∙ length: 0.3 m
- Data cable USB-A to USB Micro (Android legacy)∙ length: 0.3 m
- Charging cable USB-A to USB-C ∙ length: 1.0 m
- Basic unit and HD probe
- USB-C charging port
-
Smartphone app
- Four-language smartphone app for Android and IOS
- Temperature display of the camera
- Five-fold zoom (with display of the zoom factor in the app)
- Rotation of the image in 90° increments
- Adding a timestamp
-
Probe
- Probe length: 1 m
- IP protection rating: IP67

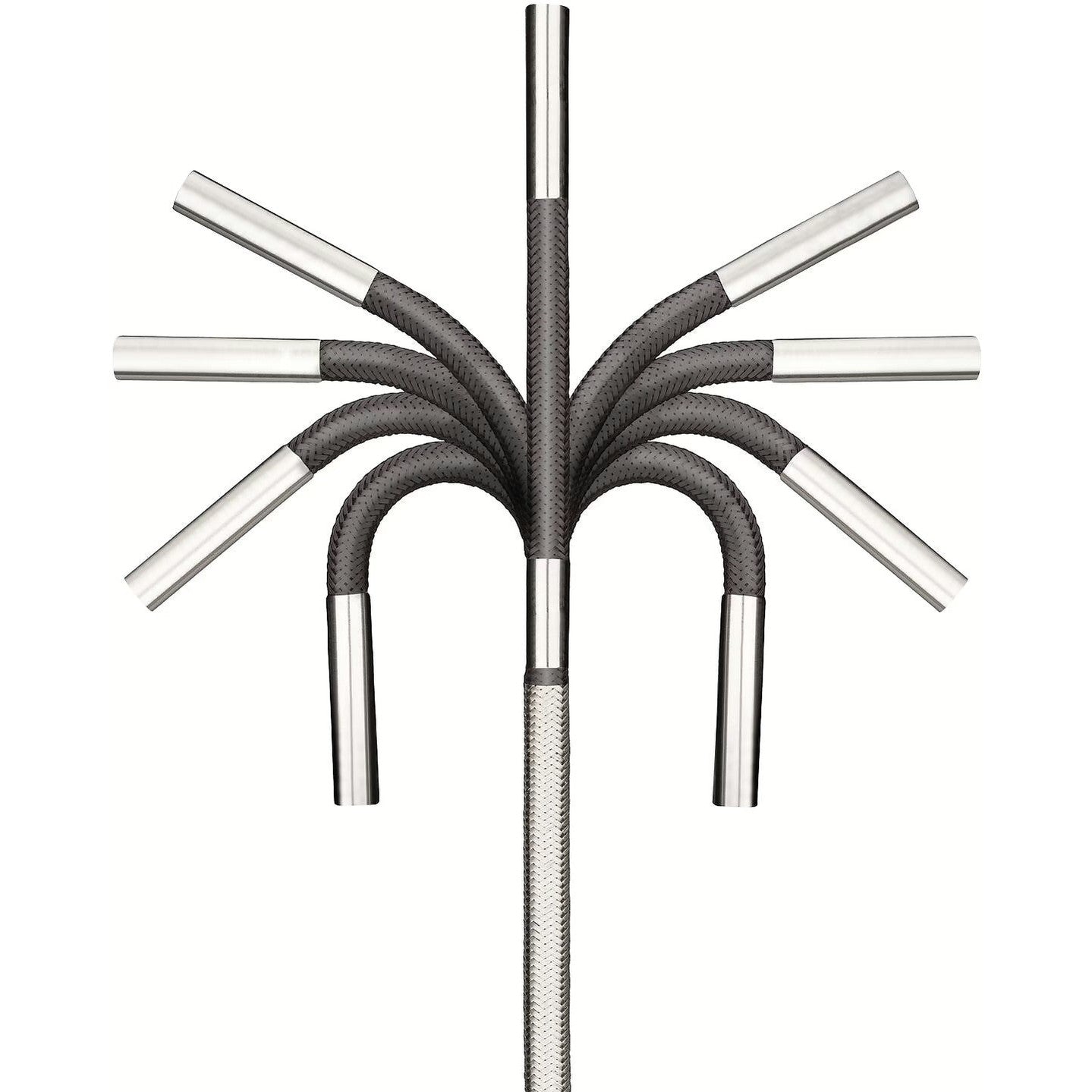

- Articulation of the camera probe: Axial 180° ∙ Radial 360°
- Camera light: LED with white light 6000 to 8000 lux
- Three-stage brightness setting
- Temperature range: -20° C to 70° C
- Wear-resistant, elastic metal hose (stainless steel)
- Photo image format: Jpeg: resolution: 1280 x 720 ∙ 640 x 480 pixels
- Video format MP4: resolution: 1280 x 720 ∙ 640 x 480 pixels
-
Device:
- With handle and sturdy smartphone holder
- IP protection rating: IP54
- Temperature range: -10° C to 50° C
- Operating humidity of up to 90 % (non-condensing)
- Weight (with battery ∙ without smartphone): 430 g

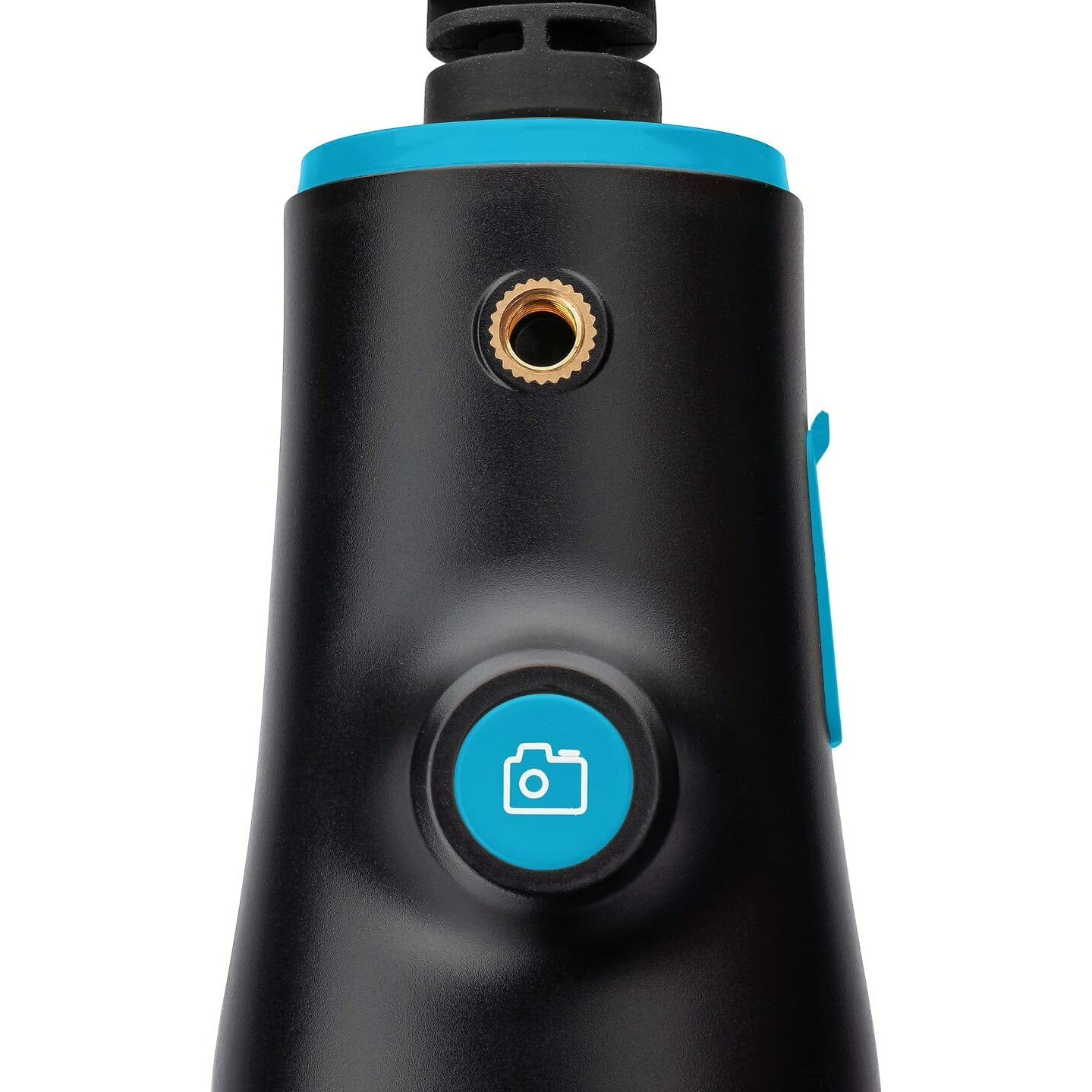

- Tripod mounting thread in the basic unit
- Buttons for On/Off switch ∙ Light control ∙ Zoom ∙ Photo ∙ Video start on the basic unit
- USB-C data and charging socket
