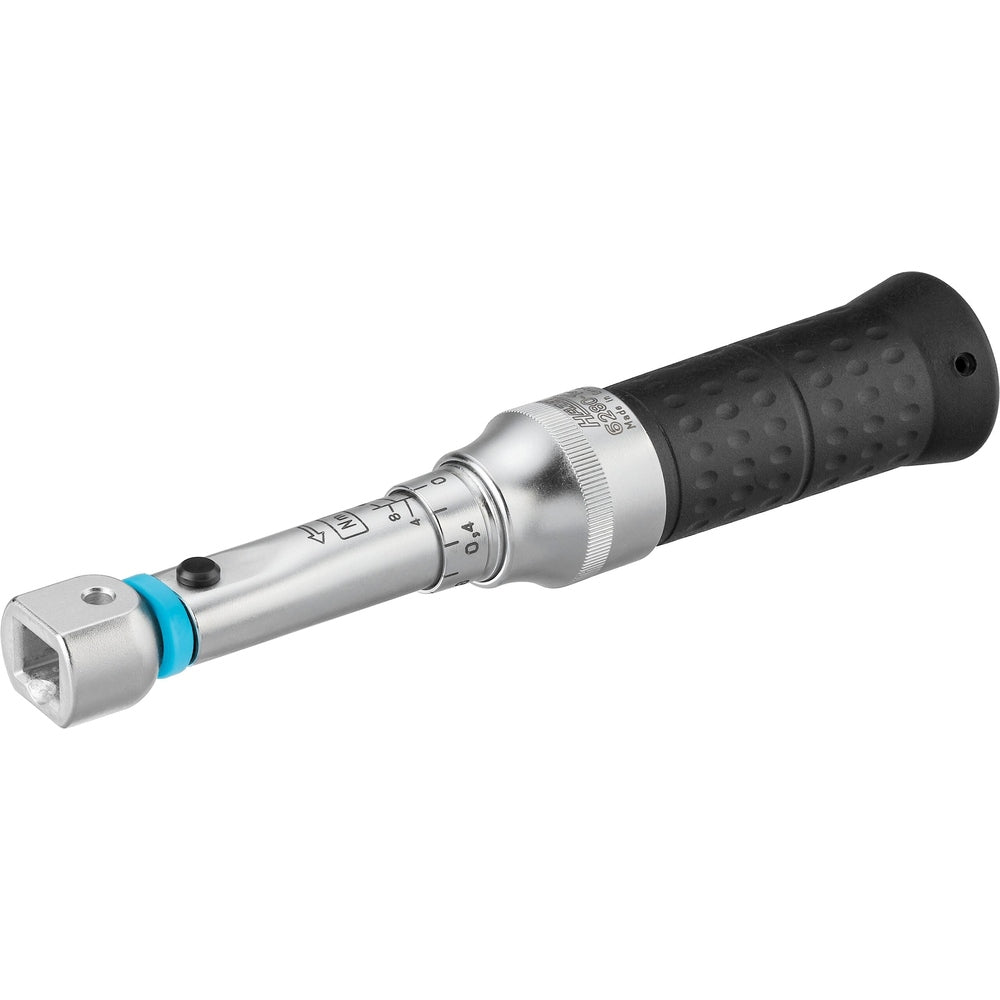

Hazet 6280-1CT Torque Wrench 9x12, 2-10 Nm
Vendor: Vendor:
Hazet
*THIS ITEM SHIPS IN 2-3 WEEKS
Hazet 6280-1CT Torque Wrench 9x12, 2-10 Nm

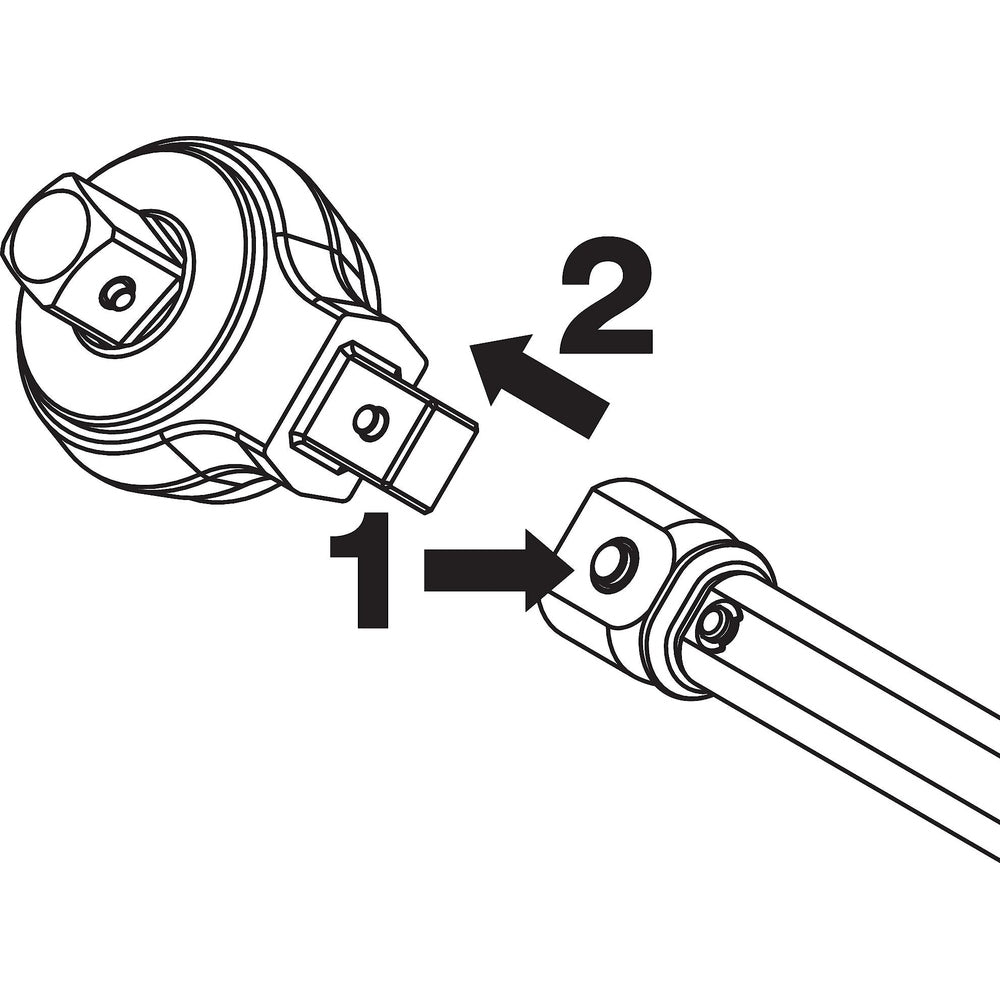

With plug-and-socket connection to accomodate insert tools
Release accuracy tolerance (in direction of actuation): +/- 2% of scale value
DIN EN ISO 6789:2003 (D)
Made in Germany
Total length: 180 mm
Output: Insert square 9 x 12 mm
Net weight: 0.32 kg
- Individual / Set: Individual Tools
- Overall Length (OAL): 175-199mm (7.0-7.9 inches)
| Output |
9 x 12 mm insert square, hollow |
| Tolerance | 2 % |
| Tightening torque minimum | 2 Nm |
| Head Width b | 22 mm |
| Tightening torque maximum | 10 Nm |
| Head Thickness a | 17 mm |
| Scale Graduation (Nm) | 0.2 Nm |
| Standard |
DIN EN ISO 6789-2:2017 |
| Inside micrometer of the adjusting tool l2 | 19.5 mm |
| Length | 181 mm |
| Actuating force min.-max. kg | 1.3 – 6.6 |
| Effective torque wrench length I1 mm | 141 mm |
