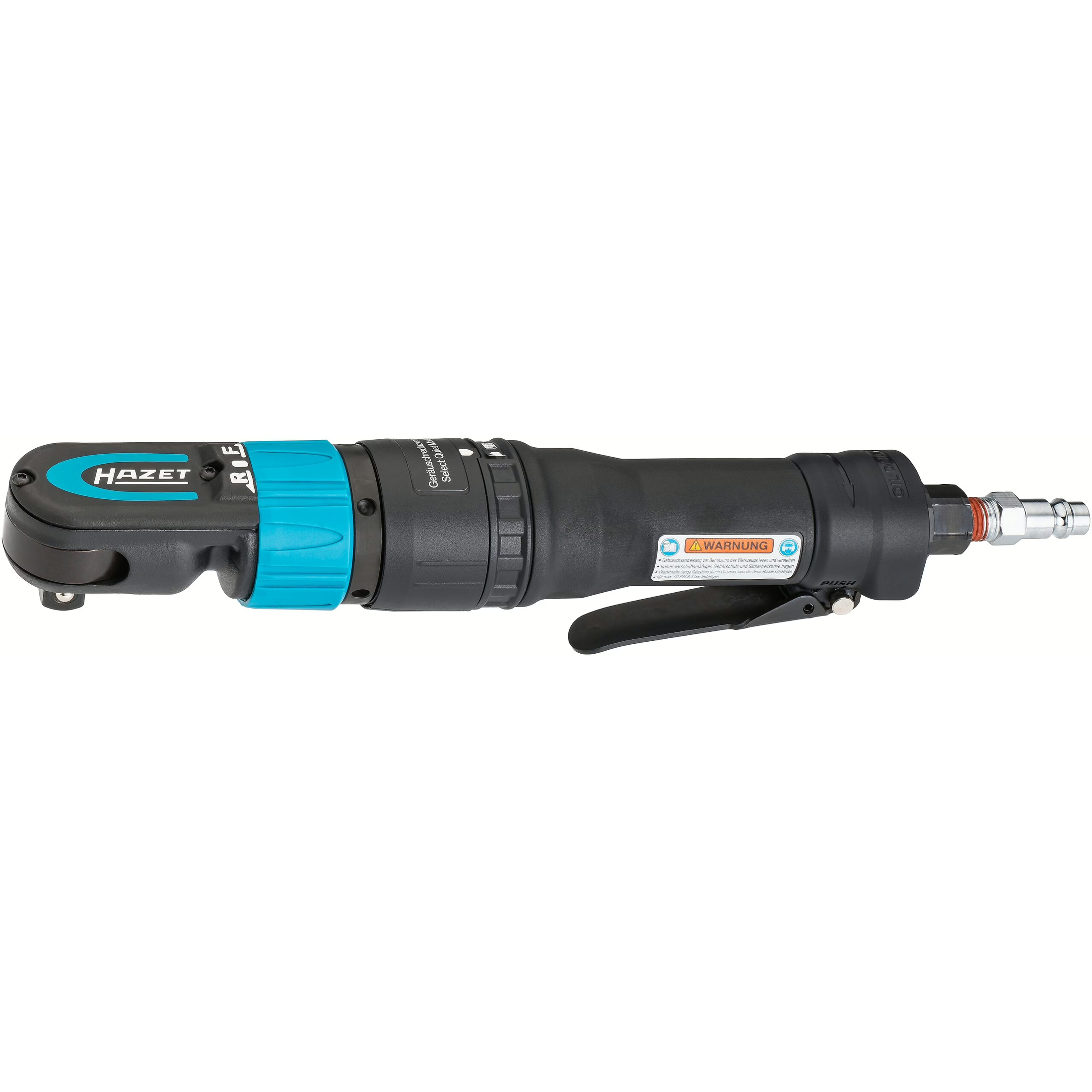

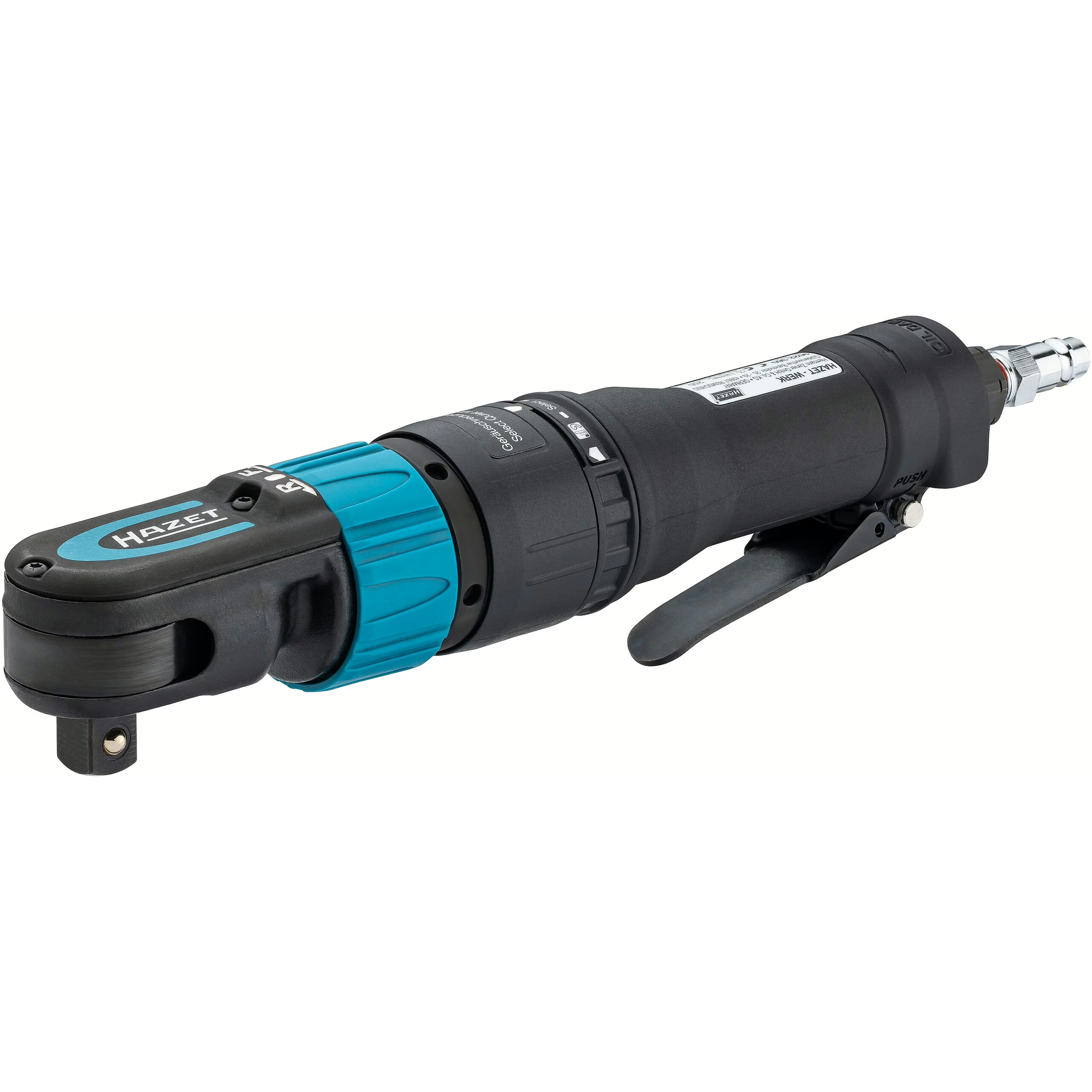

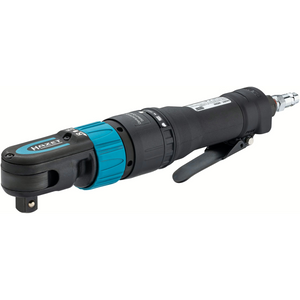

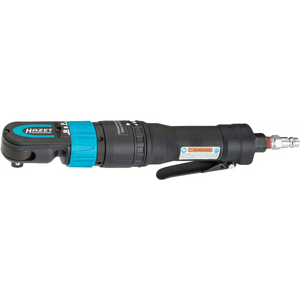

Hazet 9022-360 1/2" High performance air ratchet
NOTE* this item ships in 2-3 weeks
-
Application:
Operation of screw connections in confined spaces - 360° rotatable operating lever
- 30% less noise thanks to the ability to reduce operating noise / Quiet Mode (approx. 10 dB)

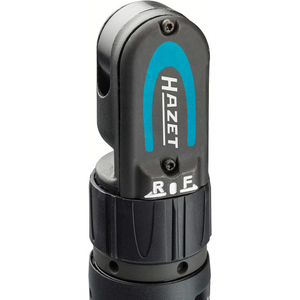

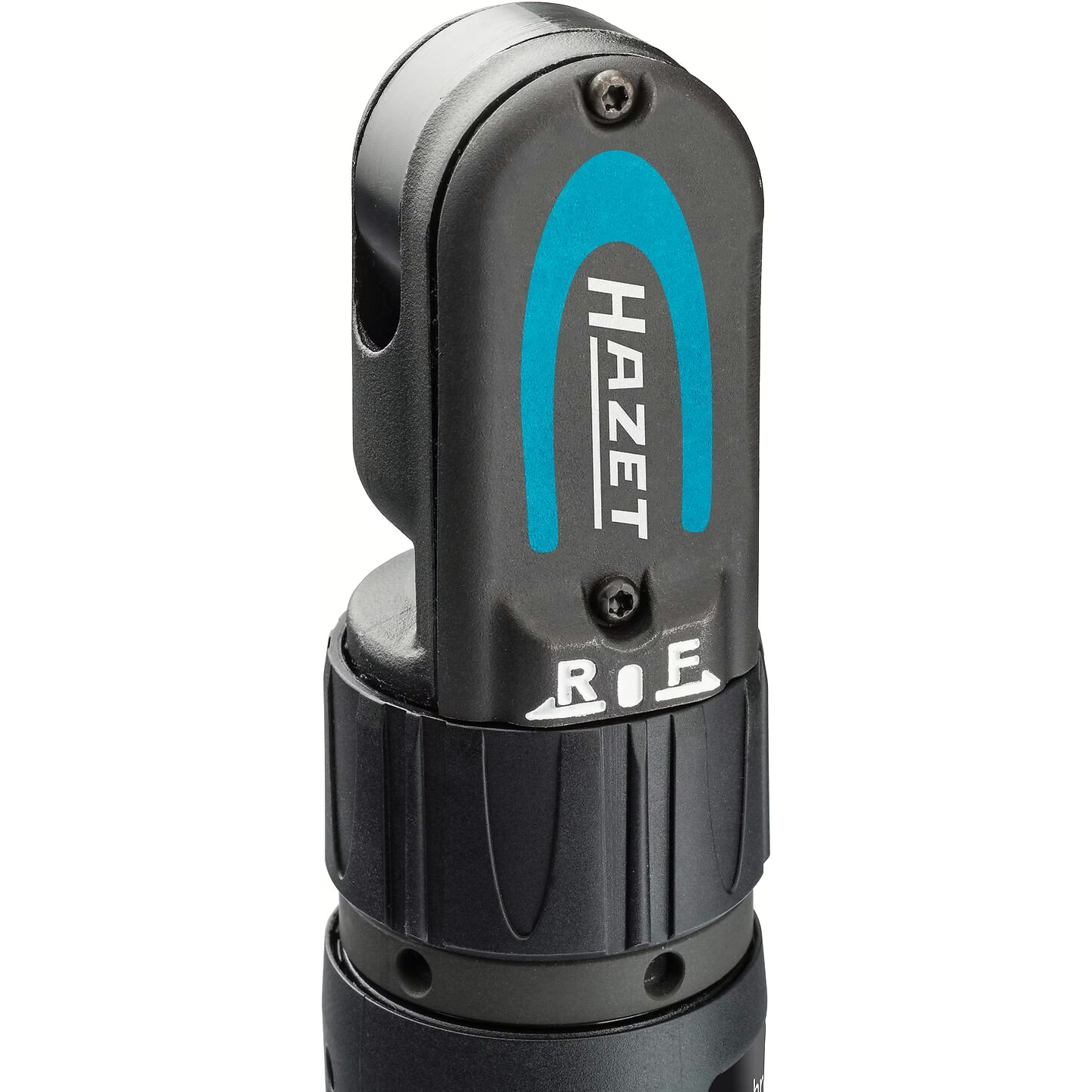

- Flat head without an interfering edge thanks to the shift lever
- Switching between left and right via the adjusting ring on the handle
- Head made of heat-treated special steel
- Long service life (tool availability) and equipment load capacity

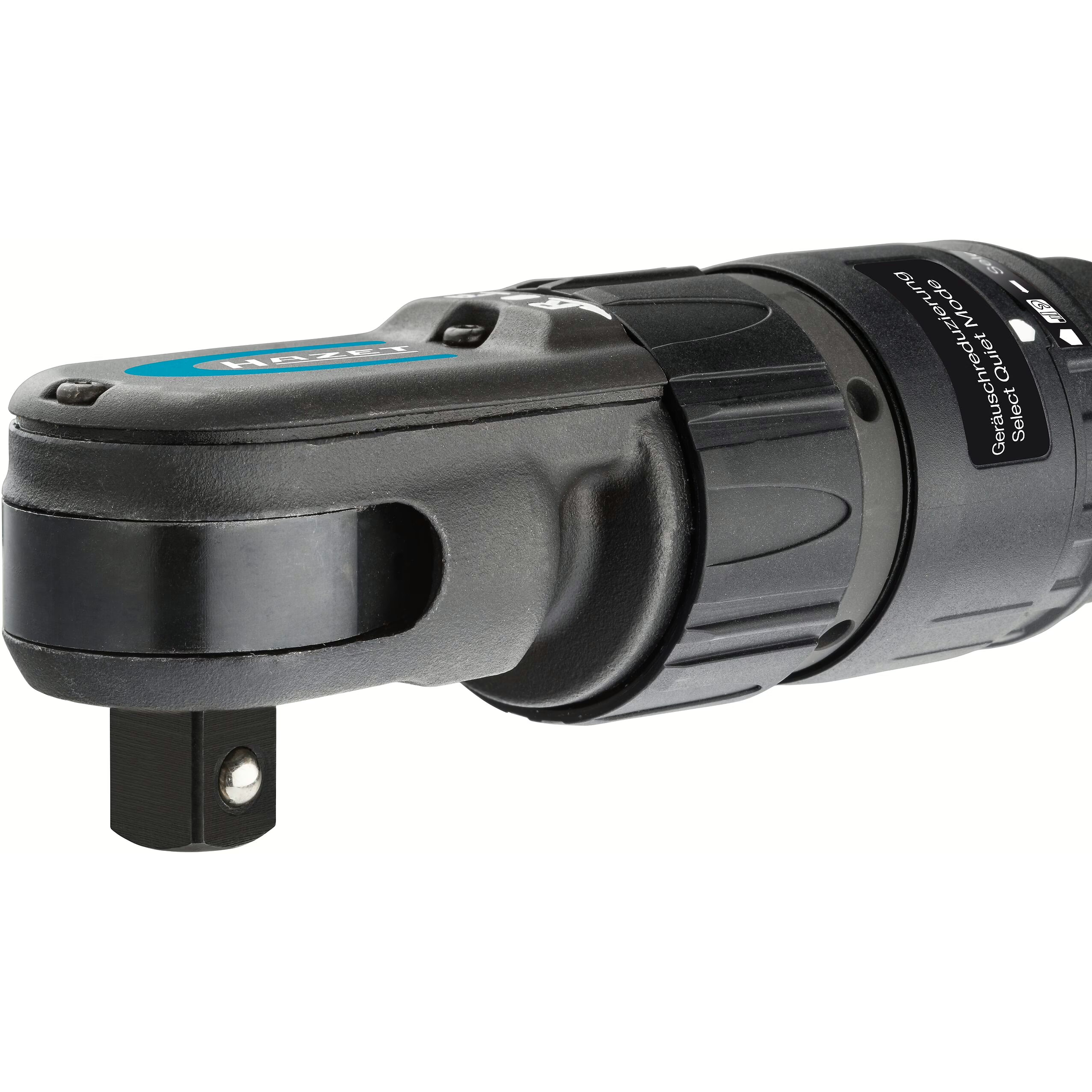

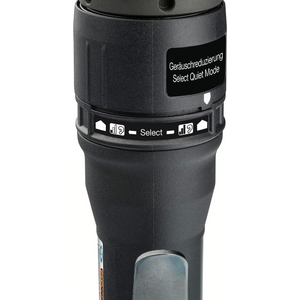

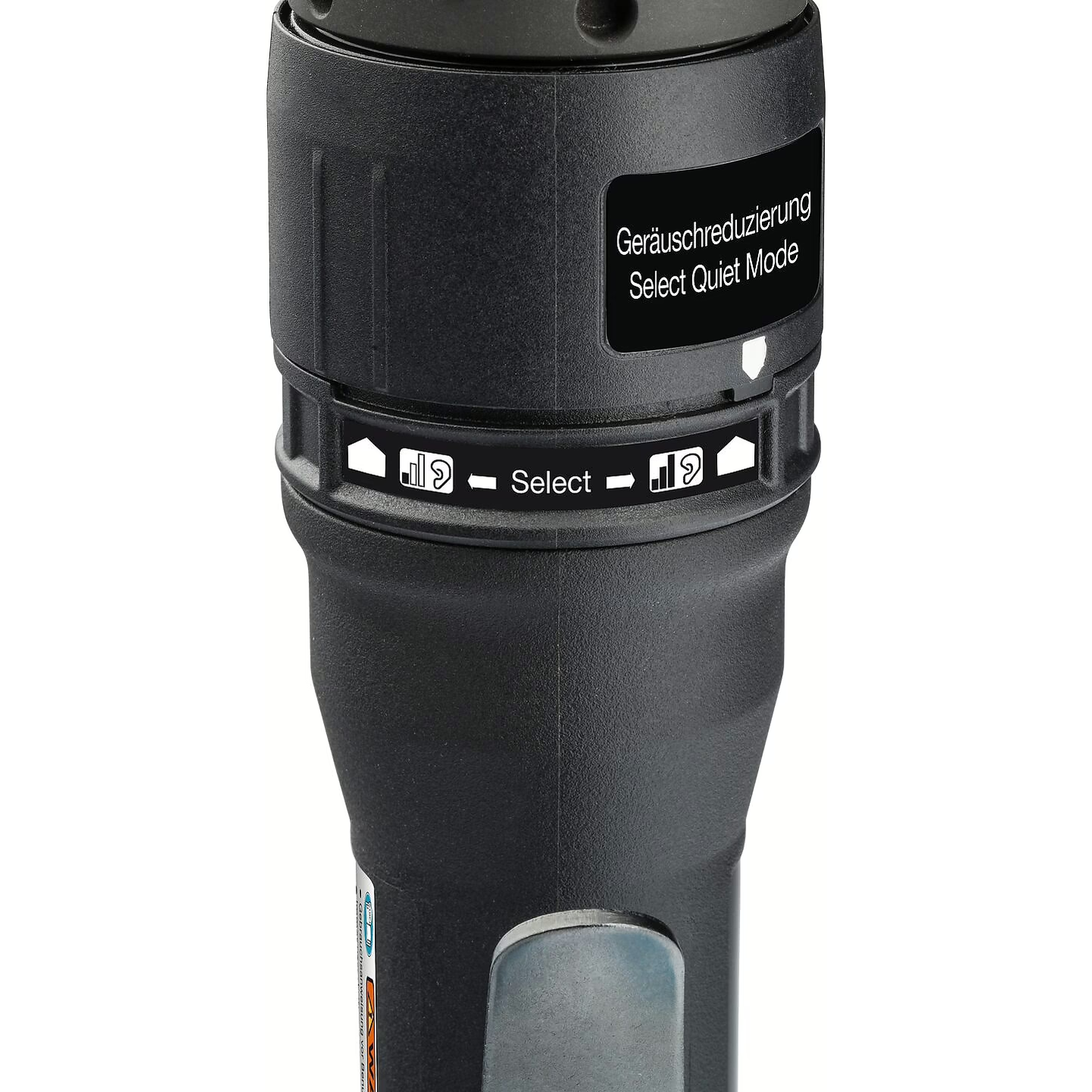

- Quiet Mode:
- Sound power level: 92.5 db(A) Lp W
- Sound pressure level: 81.5 db(A) Lp A
- For manual retightening with torque values: 500 Nm (competing products: approx. 250 Nm)
Technical Data
| Manual/impact operation |
|
| Tightening torque maximum | 120 Nm |
| Output |
|
| Net weight | 1.55 kg |
| Air requirement | 107.6 l/min |
| Forward and reverse |
|

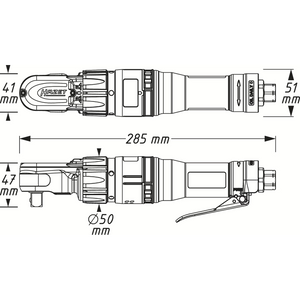

| Dimensions | 285 mm |
| Handle |
|
| Hose diameter (recommended) | 10 mm |
| Vibration acceleration | 4.87 m/s2 |
| Length | 285 mm |
| Sound pressure level | 91.2 dB(A) Lp A |
| Revolutions per minute | 200 |
| Thread type air inlet |
|
| Air connection inlet |
|

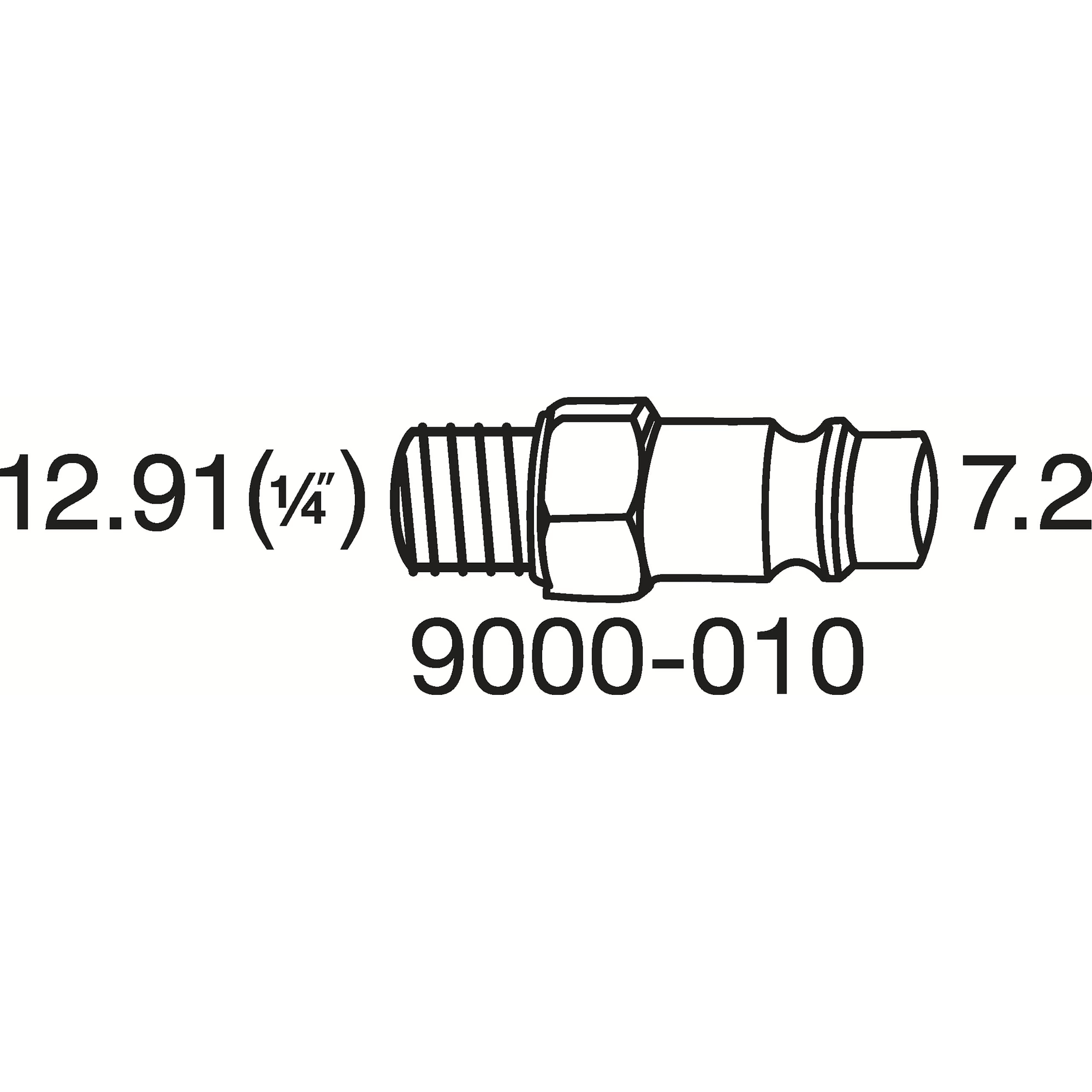

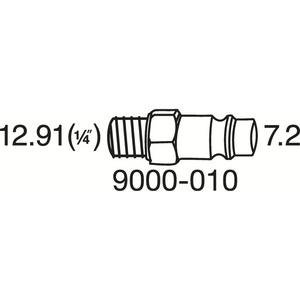

| Coupler plug |
|
| Sound power level | 102.2 db(A) Lp W |
| Air requirement [l/sec] | 1.8 l/sec |
| Working pressure (bar) | 6.3 bar |
