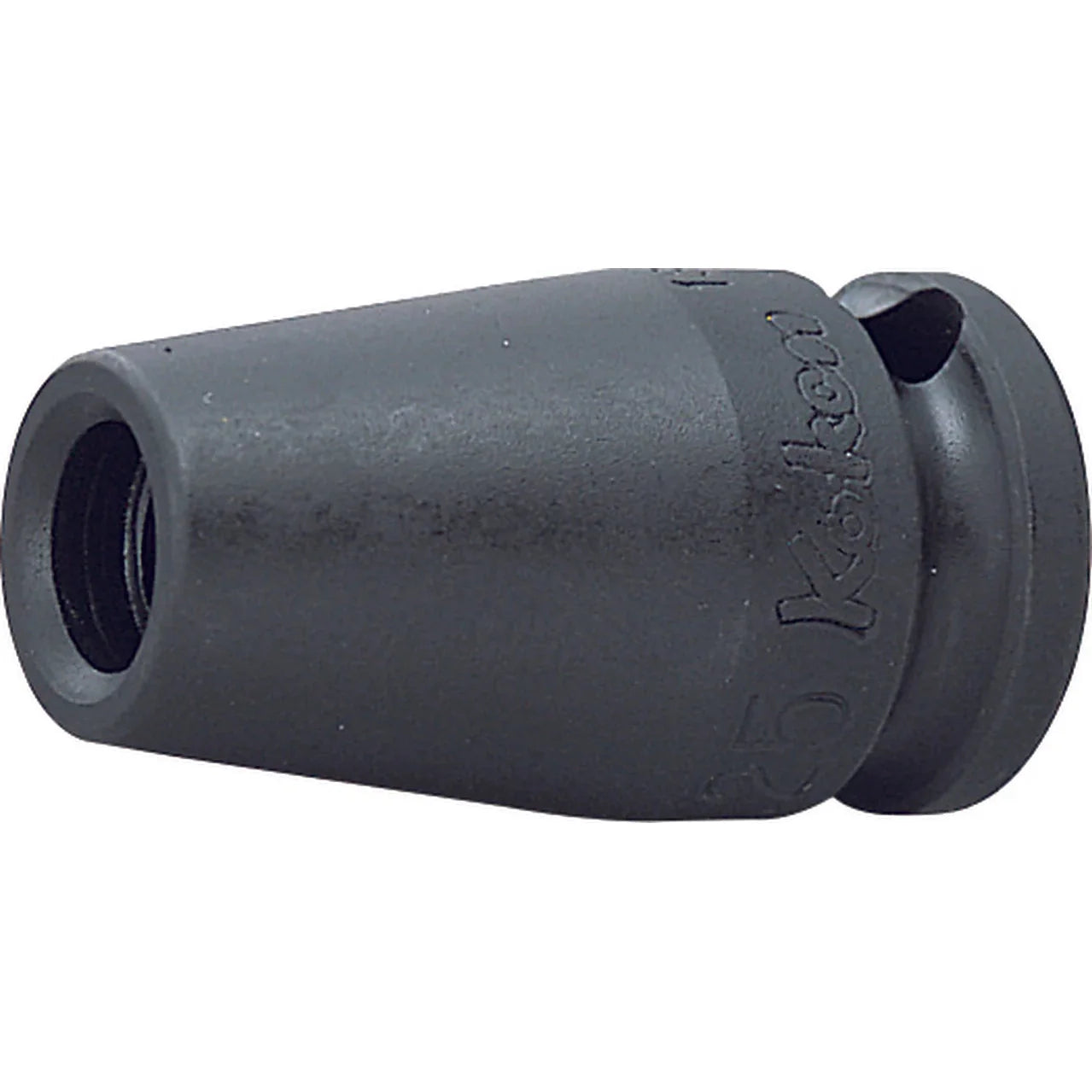

Koken 13103M-8(1.25) - 3/8" Sq Drive Stud Bolt Setter M8 x 1.25, 35mm Length
Vendor: Vendor:
Koken
Guaranteed Safe Checkout
Koken 13103M-8(1.25) - 3/8" Sq Drive Stud Bolt Setter M8 x 1.25, 35mm Length
Koken 13103M-8(1.25) - 3/8" Sq Drive Stud Bolt Setter M8 x 1.25, 35mm Length
The Stud Bolt Setter is a special socket for installing a stud bolt. The bolt contact with a steel ball to prevent the bolt from sticking onto the socket. After installing the bolt, turn anti-clockwise to remove the socket.
| Input Drive Size: | 3/8" |
| Drive Shape: | Square |
| Length: | 35mm |
| Type: | Impact Stud Bolt Setter |
| Output Size: | M8 x 1.25 |

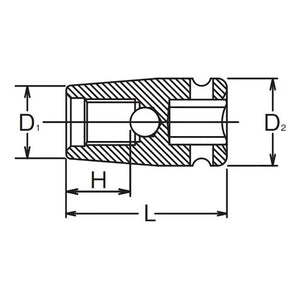

Product Dimension (Refer Line Drawing Image):
| D1 Size: | 13.5mm |
| D2 Size: | 19mm |
| H Size: | 11mm |
| L Size: | 35mm |
