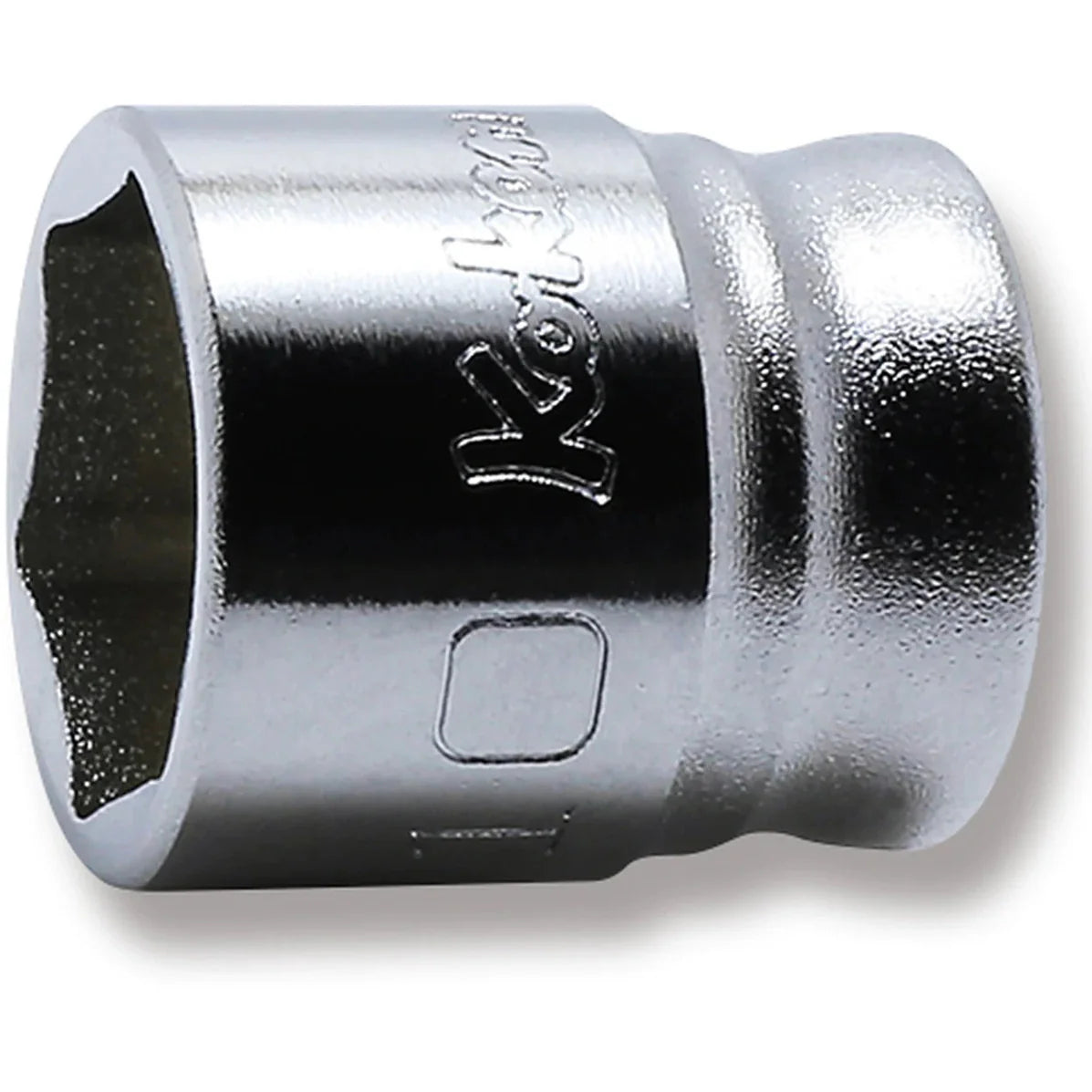

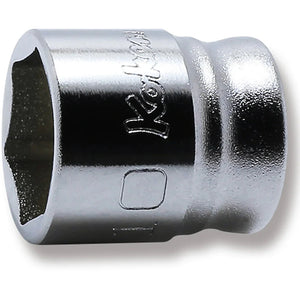

Koken 2400MZ-10 - 1/4" Sq Drive 6 point chrome Metric Socket Z-series 10mm
Koken 2400MZ-10 - 1/4" Sq Drive 6 point chrome Metric Socket Z-series 10mm
Metric, ¼” drive, 6 Point, Standard Length, Chrome Hand Sockets. A six-point socket is designed to contact the head of a fastener well away from the corners so contact is made on the thickest part of the fastener. the edges of a socket are angled back a few degrees to allow the socket to slide easily over a fastener.
| Input Drive Size: | 1/4" |
| Drive Shape: | Square |
| Length: | 15mm |
| Type: | Socket |
| Output Size: | 10mm |
| Opening: | 6pt. |

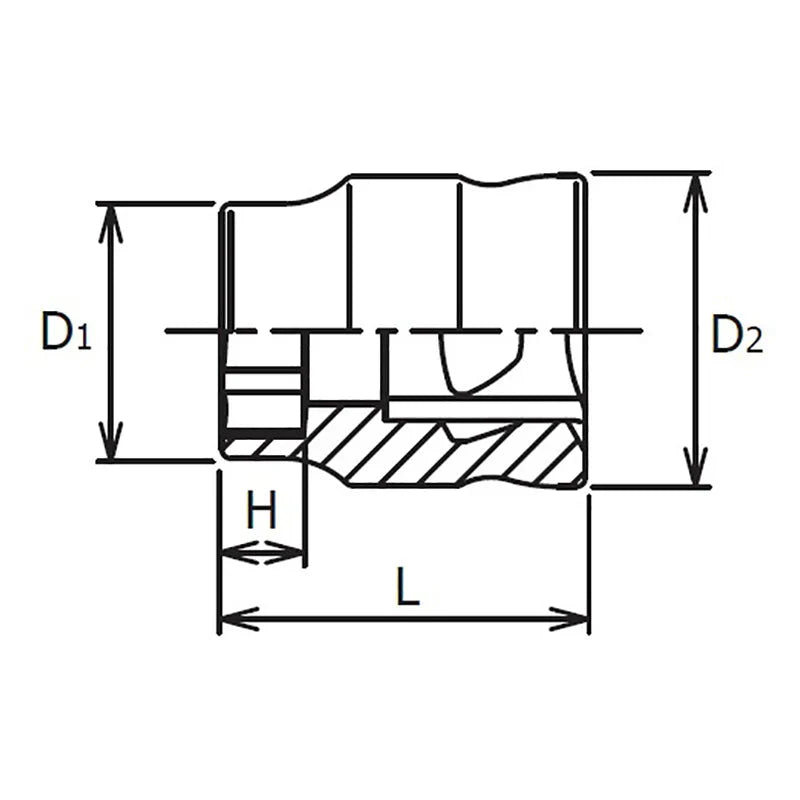

Product Dimension (Refer Line Drawing Image):
| D1 Size: | 13.5mm |
| D2 Size: | 12.5mm |
| H Size: | 7mm |
| L Size: | 15mm |
