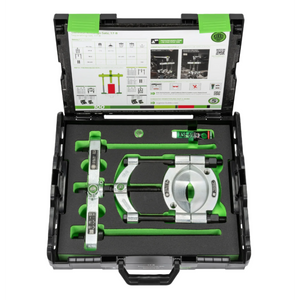

Kukko 17-B | 4-Piece Separator Set with Quick-Release Pressure Spindle Ø 22-115 mm/350 mm
Guaranteed Safe Checkout
Kukko 17-B | 4-Piece Separator Set with Quick-Release Pressure Spindle Ø 22-115 mm/350 mm
*THIS ITEM SHIPS IN 2-3 WEEKS
Kukko 17-B | 4-Piece Separator Set with Quick-Release Pressure Spindle Ø 22-115 mm/350 mm
Description
The 17-piece separator set 4 is used for removing ball bearings, roller bearings, inner rings, and other flat-lying parts in craftsmanship, industry, and workshops when there is not enough space for puller jaws. The separator-extraction process is able to gently separate those parts initially before they can be pulled off from the outside. Compared to series 15, series 17 is particularly handy because the separator jaws can be quickly and concentrically tightened by a pressure spindle. This 4-piece set includes one separator and puller device as well as a pair of extensions, ensuring the full range of applications.
Application
-

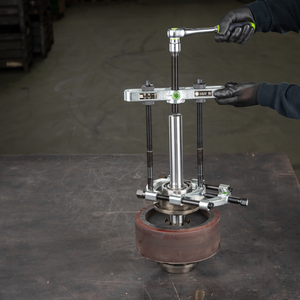

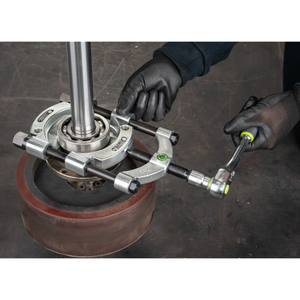

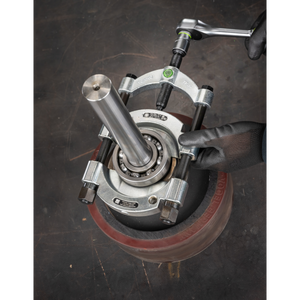

For pulling off ball bearings, roller bearings, inner rings and other parts that lie flat on the surface

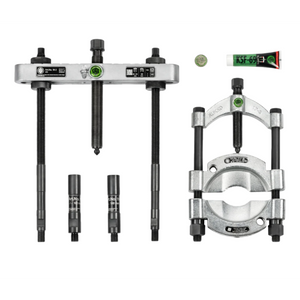

Spare Parts
- 017235Side bolt with nut for separator 17-B, 17-2
- 018275Side screw for pullers 15-B, 17-B, 68-2, 18-2, 18-2-B
- 17-2Seperator with quick clamping pressure spindle, separation diameter 22 mm - 115 mm, 41 mm usable cutting depth
- 17-2-06Spindle for separators with quick-clamping spindle 17-2, 17-B
- 17-2-TCrossbar for separators with quick-clamping pressure spindle 17-2, 17-B
- 18-2Puller, up to spread, 260 mm reach M14x1,5
- 18-2-TCrossbar for puller 18-2-B, 15-B, 17-B, 18-2
- 19-2-PTwo extensions for pullers (extension 100 mm, mounting thread M14x1,5)
- 621170Mechanical pressure spindle Ø 20,955 mm for spindle thread G 1/2" / 14, 170 mm length, 5,4 mm thread
