Vendor: Vendor: Kukko
Sale price $1,753.95 CAD
Add to Wishlist Add to Compare

Guaranteed Safe Checkout

Visa
Mastercard
American Express
Shop Pay
Apple Pay
Google Pay
SKU: 17-CBarcode: 4021176008771
Kukko 17-C | 4-piece separator set with quick-clamping spindle Ø 25-155 mm/400 mm

Kukko 17-C | 4-piece separator set with quick-clamping spindle Ø 25-155 mm/400 mm

$1,753.95
*THIS ITEM SHIPS IN 2-3 WEEKS
Kukko 17-C | 4-piece separator set with quick-clamping spindle Ø 25-155 mm/400 mm

Description

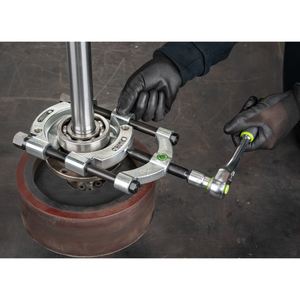

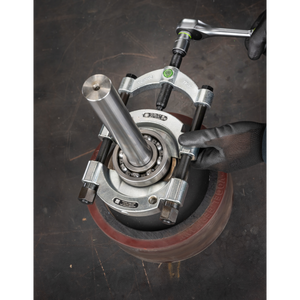

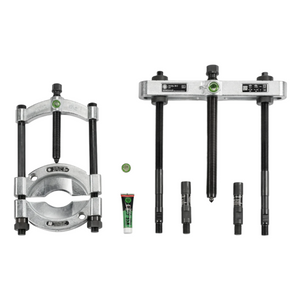

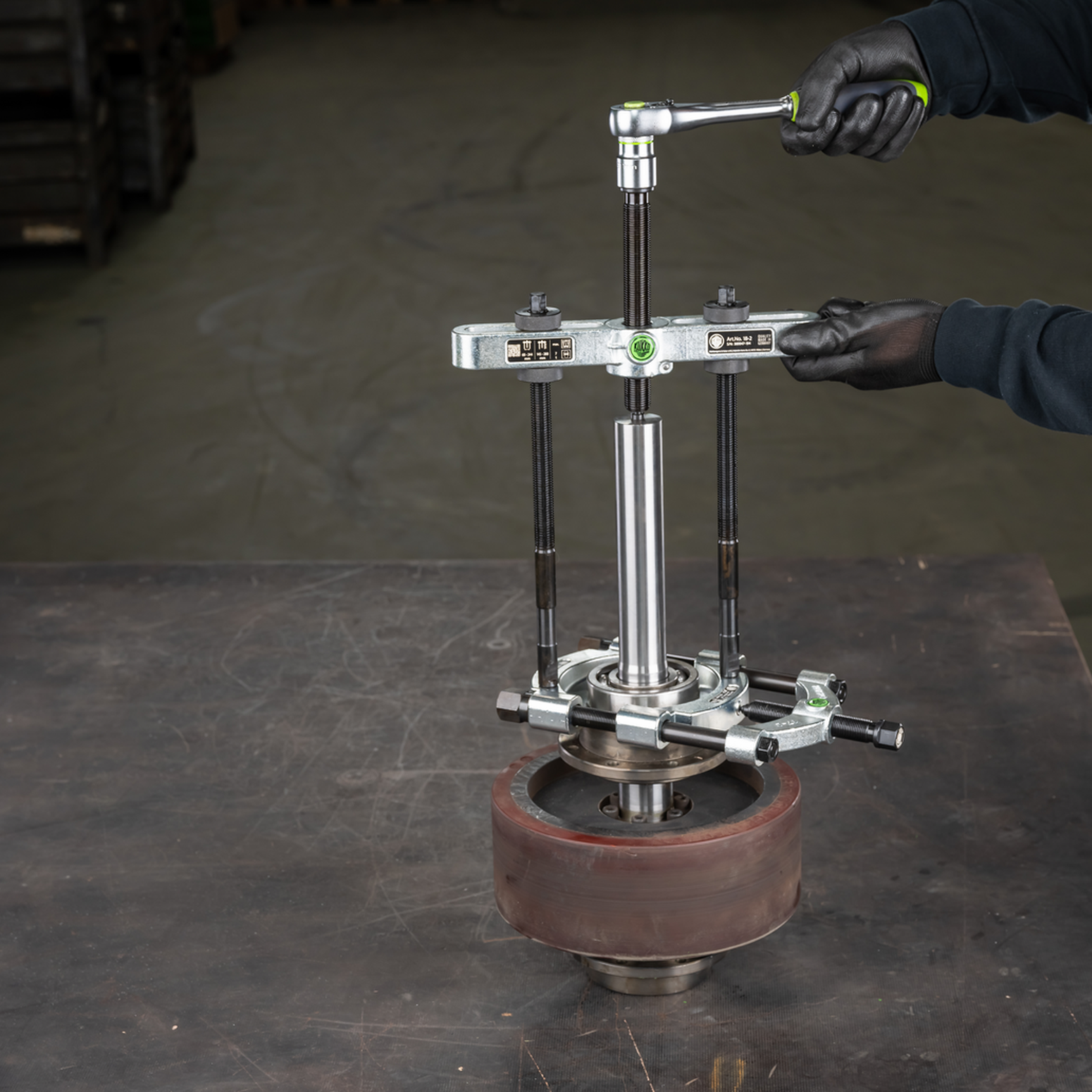

The 4-piece separator set 17-C is used for pulling ball bearings, roller bearings, inner rings, and other flat-lying parts in crafts, industry, and workshops when there is insufficient space for puller jaws. The separating and pulling process is capable of gently separating those parts before they can be pulled off from the outside. Compared to the series 15, the series 17 is particularly handy because the separating jaws can be quickly and concentrically tightened by a pressure spindle. This 4-piece set includes a separating and pulling device, as well as a pair of extensions, ensuring the full range of applications.

Application

  • For pulling off ball bearings, roller bearings, inner rings and other parts that lie flat on the surface

Spare Parts
  • 017322Side bolt with nut for separators 17-C, 17-3
  • 018355Side screw for pullers 15-C, 17-C, 18-3, 18-3-B
  • 17-3Seperator with quick-clamping pressure spindle, separation diameter 30 mm - 150 mm, 50 mm usable cutting depth
  • 17-3-06Spindle for separators with quick clamping spindle 17-3, 17-C
  • 17-3-TCrossbar for separators with quick-clamping spindle 17-3, 17-C
  • 18-3Puller, up to spread, 300 mm reach M18x1,5
  • 18-3-TCrossbar for puller 18-3, 18-3-B, 15-C, 17-C
  • 19-3-PTwo extensions for pullers (100 mm extension, mounting thread M18x1,5)

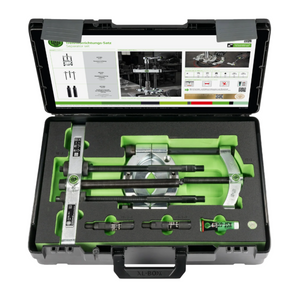

  • K15/17-CMetal case for separator sets 15-C & 17-C
Datasheet
