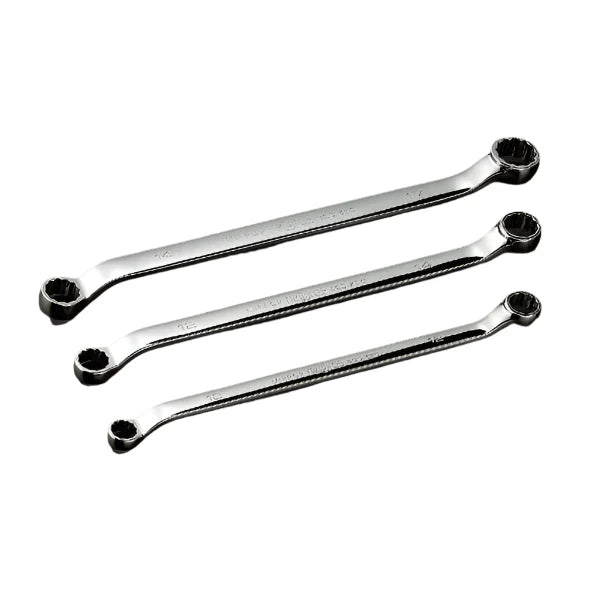

Nepros NM5-1012 - Metric Deep Offset Box-End - Standard Wrenches (12pt.)
Vendor: Vendor:
Nepros
Guaranteed Safe Checkout
Nepros NM5-1012 - Metric Deep Offset Box-End - Standard Wrenches (12pt.)
Nepros NM5-1012 - Metric Deep Offset Box-End - Standard Wrenches (12pt.)

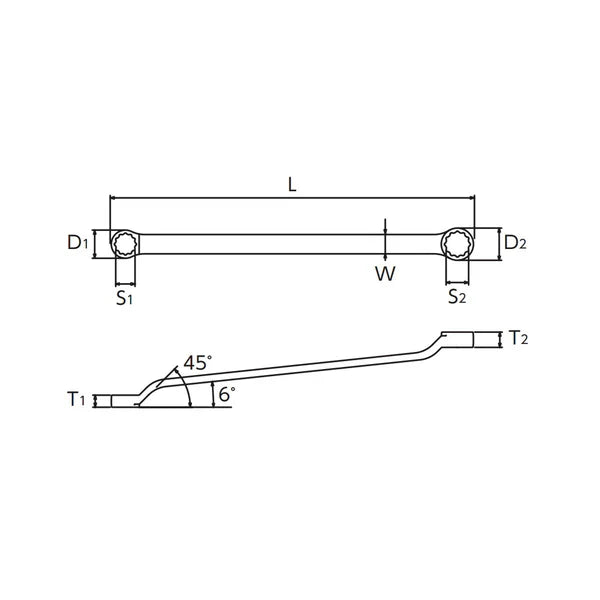

| No. | S1 (mm) |
S2 (mm) |
D1 (mm) |
D2 (mm) |
T1 (mm) |
T2 (mm) |
W (mm) |
L (mm) |
Weight (g) |
|---|---|---|---|---|---|---|---|---|---|
| NM5-05507 5.5 mm/7 mm Wrench |
5.5 | 7 | 9 | 11 | 4.5 | 5 | 6.5 | 150 | 25 |
| NM5-0607 6 mm/7 mm Wrench |
6 | 7 | 9 | 11 | 4.5 | 5 | 6.5 | 150 | 25 |
| NM5-0708 7 mm/8 mm Wrench |
7 | 8 | 11 | 12 | 5 | 5.5 | 7.5 | 167 | 35 |
| NM5-0809 8 mm/9 mm Wrench |
8 | 9 | 12 | 13.5 | 5.5 | 6 | 8.5 | 172.5 | 40 |
| NM5-0810 8 mm/10 mm Wrench |
8 | 10 | 12 | 14.5 | 5.5 | 6.5 | 8.5 | 180 | 40 |
|
NM5-1012 10 mm/12 mm Wrench |
10 | 12 | 14.5 | 17.5 | 6.5 | 7.5 | 10 | 205 | 70 |
| NM5-1113 11 mm/13 mm Wrench |
11 | 13 | 16 | 18.5 | 7 | 8.5 | 11 | 214 | 85 |
| NM5-1214 12 mm/14 mm Wrench |
12 | 14 | 17.5 | 20 | 7.5 | 9.5 | 12 | 225 | 100 |
| NM5-1315 13 mm/15 mm Wrench |
13 | 15 | 18.5 | 21.5 | 8.5 | 10 | 13 | 235 | 116 |
| NM5-1417 14 mm/17 mm Wrench |
14 | 17 | 20 | 24.5 | 9.5 | 11 | 13.5 | 245 | 140 |
| NM5-1618 16 mm/18 mm Wrench |
16 | 18 | 23 | 26 | 10.5 | 11.5 | 15 | 264.5 | 185 |
| NM5-1719 17 mm/19 mm Wrench |
17 | 19 | 24.5 | 27 | 11 | 12 | 16 | 284 | 220 |
| NM5-1921 19 mm/21 mm Wrench |
19 | 21 | 27 | 30 | 12 | 13 | 17.5 | 300 | 270 |
| NM5-2224 22 mm/24 mm Wrench |
22 | 24 | 31.5 | 34 | 13.5 | 15 | 20 | 335 | 380 |
| NM5-2730 27 mm/30 mm Wrench |
27 | 30 | 38 | 42.5 | 16.5 | 18 | 23 | 405 | 645 |
| NM5-2832 28 mm/32 mm Wrench |
28 | 32 | 40 | 45 | 17.5 | 18 | 24 | 427.5 |
